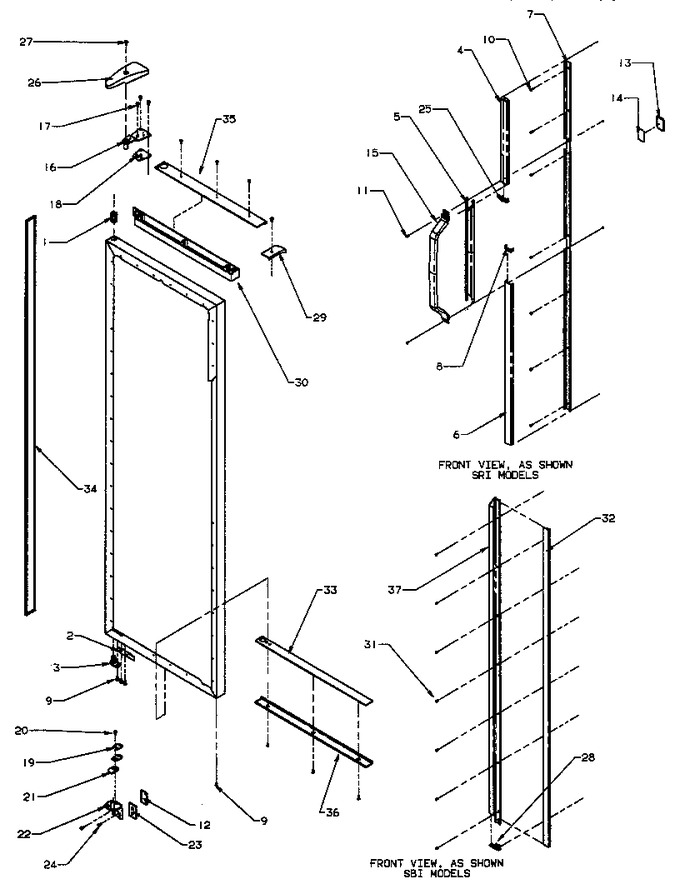

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10393802		Bushing, Door (wht)		Appelez-nous	-
2	C8972405		Stop-w Door		Appelez-nous	-
3	R0181181		Kit,dr Closure   (Replaces: D7751402)			Immediately	$ 7.55
9	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
10	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
11	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 10.58
12	10860201		Kit, Bot.hinge Shim		Appelez-nous	-
16	10495804		Hinge, Top R (e-ct)		Appelez-nous	-
17	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
18	B8389001		Shim, Top Hinge		Appelez-nous	-
19	B8387701		Shim, Door Closure		Appelez-nous	-
20	W11227370		Screw, Lock Brake Mounting   (Replaces: M0220418)			Immediately	$ 14.91
21	R0181181		Kit,dr Closure   (Replaces: D7748301)			Immediately	$ 7.55
22	10496108		Hinge, Bottom		Appelez-nous	-
23	10399501		Kit,btm Hinge Shim		Appelez-nous	-
23	10399502		Kit,btm Hinge Shim		Appelez-nous	-
24	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
26	10504205		Cover, Hinge		Appelez-nous	-
28	10871201		Cap, Ref Handle Bot(white)		Appelez-nous	-
29	10871101		Cap, W Ref Handle Top		Appelez-nous	-
30	10979101		Exten. W Ref Door		Appelez-nous	-
32	10945933		Insert-w Handle		Appelez-nous	-
33	10494603		Support Ref Trim (btm)		Appelez-nous	-
34	10494509		Trim, Vert		Appelez-nous	-
35	10494404		Trim, Refr Dr Top		Appelez-nous	-
36	10602607		Trim, Ref Dr Bot		Appelez-nous	-
37	10875728		Handle, Ref Dr (white)		Appelez-nous	-
