Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 C8982801 Retainer, Door Liner Appelez-nous -
2 10881101W Ass`y, Frz Door(white) Appelez-nous -
3 10525507 Shelf, Frz Dr Appelez-nous -
4 10359703 Gasket, Door (e Ref) Appelez-nous -
5 10534901 Liner, Frz. Door Appelez-nous -
6 D7828601 Retainer, Door Liner Appelez-nous -
7 M0219730 Screw Special Order $ 7.65

8 B0523563 Insulation Ft. K Appelez-nous -
9 10063206 Rem Dike I & W Lower Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

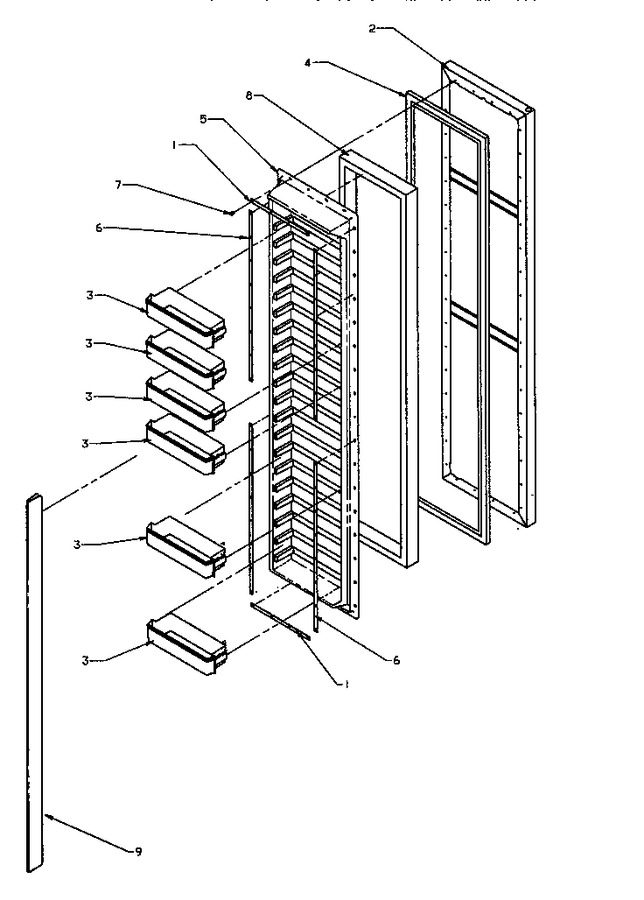

Diagram for SBI20S2W (BOM: P1190701W W)
