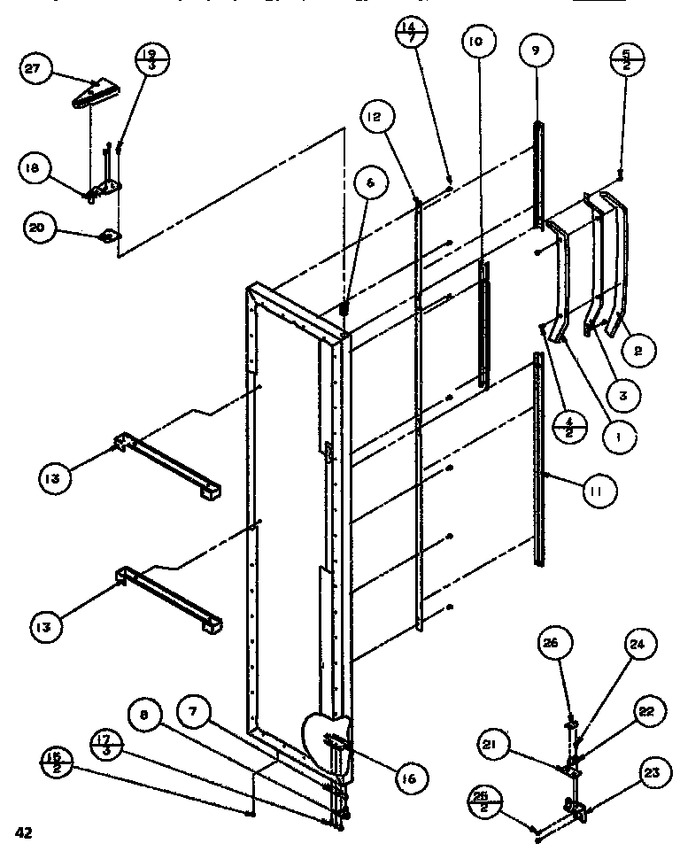

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7863003		Inner Pad K		Appelez-nous	-
1	D7863002		Pad, Handle Inner (wht)		Appelez-nous	-
1	D7863004		Pad, Handle Inner (alm)		Appelez-nous	-
2	D7863103		Outer Pad K		Appelez-nous	-
2	D7863104		Pad, Handle Outer (alm)		Appelez-nous	-
2	D7863102		Pad, Handle Outer (wht)		Appelez-nous	-
3	D7826604		Handle, Door		Appelez-nous	-
4	M0215115		Screw		Appelez-nous	-
5	WP3400094		Screw   (Replaces: M0253942)				$ 8.33
6	C8965901		Bushing, Top		Appelez-nous	-
7	C8972401		Stop, Door (blk)		Appelez-nous	-
8	R0181181		Kit,dr Closure   (Replaces: D7751402)			Immediately	$ 6.80
9	D7852108		Trim Frz Dr. Upper		Appelez-nous	-
9	D7852107		Trim Frz Dr Upper		Appelez-nous	-
9	D7852109		Trim Frz Dr. Upper Al.		Appelez-nous	-
10	D7853903		Trim Center Frz		Appelez-nous	-
10	D7853904		Trim Center Frz		Appelez-nous	-
10	D7853905		Trim Center Frz		Appelez-nous	-
11	D7792708		Trim, Frz Lower		Appelez-nous	-
11	D7792707		Trim, Frz Lower		Appelez-nous	-
11	D7792709		Trim, Frz Lower		Appelez-nous	-
12	D7792902		Frz Trim, Retainer		Appelez-nous	-
13	D7837401		Support, Handle		Appelez-nous	-
14	M0213815		Screw		Appelez-nous	-
15	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.59
16	D7790801		Nut, Door Stop		Appelez-nous	-
17	M0219717		Screw		Appelez-nous	-
18	D7757803		Top Hinge Assy		Appelez-nous	-
19	R9800670		Kit, Screw   (Replaces: M0257244)				$ 9.52
20	B8389001		Shim, Top Hinge		Appelez-nous	-
21	B8386701		Kit,btm Hinge Shim		Appelez-nous	-
21	B8386703		Kit,btm Hinge Shim		Appelez-nous	-
21	B8386702		Kit,btm Hinge Shim		Appelez-nous	-
22	R0181181		Kit,dr Closure   (Replaces: D7748301)			Immediately	$ 6.80
23	D7757705		Hinge Assy		Appelez-nous	-
24	WPW10068250		Screw   (Replaces: M0202530)				$ 3.84
25	M0246258		Screw		Appelez-nous	-
26	B8387702		Shim, Door Closure		Appelez-nous	-
26	B8387701		Shim, Door Closure		Appelez-nous	-
27	D7872102		Hinge Cover		Appelez-nous	-
	NOTE:		Note: Ref. No. 8, Freezer Door Pan Doesn`t Include Door Stop Mounting Nut Tap Strip And Handle Supports (ref. Nos. 13, 16 On Previous Page). Order Separately		Appelez-nous	-
