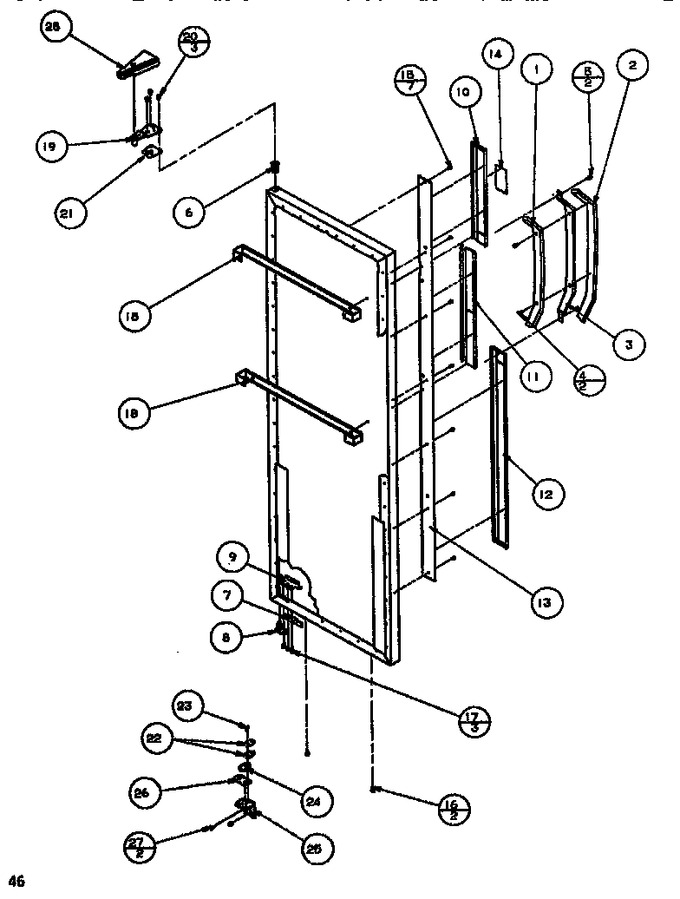

SC519J (BOM: P7804505W) | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	D7863002	Pad, Handle Inner (wht)	Appelez-nous	-
1	D7863003	Inner Pad K	Appelez-nous	-
1	D7863004	Pad, Handle Inner (alm)	Appelez-nous	-
2	D7863103	Outer Pad K	Appelez-nous	-
2	D7863102	Pad, Handle Outer (wht)	Appelez-nous	-
2	D7863104	Pad, Handle Outer (alm)	Appelez-nous	-
3	D7826604	Handle, Door	Appelez-nous	-
4	M0215115	Screw	Appelez-nous	-
5	WP3400094	Screw (Replaces: M0253942)			$ 8.33
6	C8965901	Bushing, Top	Appelez-nous	-
7	C8972401	Stop, Door (blk)	Appelez-nous	-
8	R0181181	Kit,dr Closure (Replaces: D7751402)		Immediately	$ 6.80
9	D7790801	Nut, Door Stop	Appelez-nous	-
10	D7852013	Trim, Ref Dr Upper	Appelez-nous	-
10	D7852012	Trim, Ref Dr Upper	Appelez-nous	-
10	D7852014	Trim, Ref Dr Upper	Appelez-nous	-
11	D7853803	Trim Center Ref	Appelez-nous	-
11	D7853805	Trim Center Ref Dr	Appelez-nous	-
11	D7853804	Trim Center Frz Gold	Appelez-nous	-
12	D7792808	Trim Ref Lower	Appelez-nous	-
12	D7792809	Trim, Ref Door	Appelez-nous	-
12	D7792807	Trim, Ref. Lower	Appelez-nous	-
13	D7793202	Ref. Trim, Retainer	Appelez-nous	-
14	C8984301	Thinplate, Door	Appelez-nous	-
15	M0213815	Screw	Appelez-nous	-
16	WP489349	Screw (Replaces: M0216515)		Immediately	$ 7.59
17	M0219717	Screw	Appelez-nous	-
18	D7837403	Support, Handle	Appelez-nous	-
19	D7757803	Top Hinge Assy	Appelez-nous	-
20	R9800670	Kit, Screw (Replaces: M0257244)			$ 9.52
21	B8389001	Shim, Top Hinge	Appelez-nous	-
22	B8387701	Shim, Door Closure	Appelez-nous	-
22	B8387702	Shim, Door Closure	Appelez-nous	-
23	WPW10068250	Screw (Replaces: M0202530)			$ 3.84
24	R0181181	Kit,dr Closure (Replaces: D7748301)		Immediately	$ 6.80
25	D7757706	Hinge Assy Bottom	Appelez-nous	-
26	B8386703	Kit,btm Hinge Shim	Appelez-nous	-
26	B8386702	Kit,btm Hinge Shim	Appelez-nous	-
26	B8386701	Kit,btm Hinge Shim	Appelez-nous	-
27	M0246258	Screw	Appelez-nous	-
28	D7872102	Hinge Cover	Appelez-nous	-
