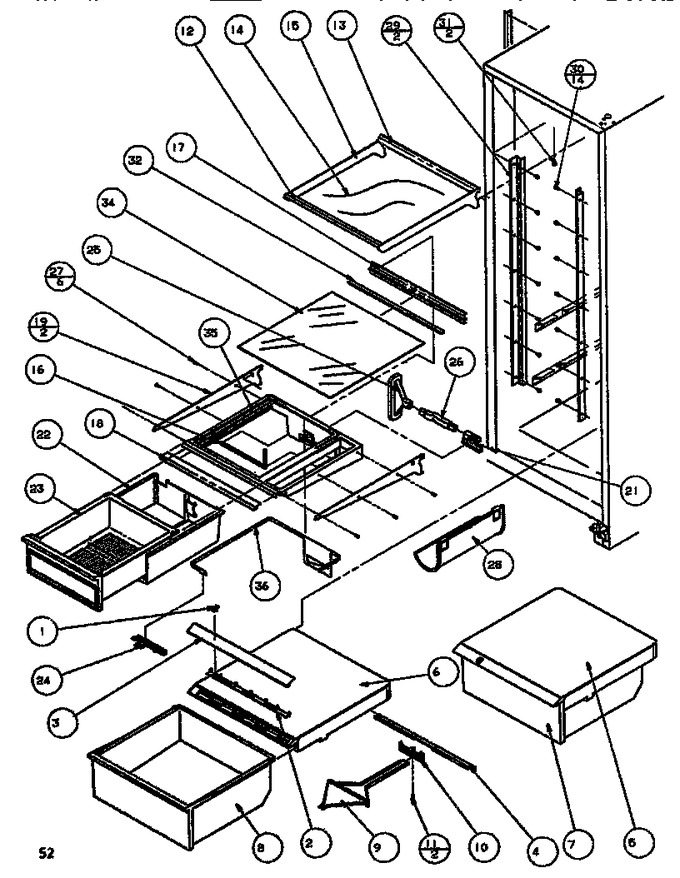

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8908303 | Knob |
|
- | |||||
| 2 | D7587705 | Slide Humidity |
|
- | |||||
| 3 | D7616632 | Trim |
|
- | |||||
| 4 | D7764103 | Damper, Humidity Center |
|
- | |||||
| 5 | D7796401 | Crisper Top |
|
- | |||||
| 6 | D7796402 | Crisper Top |
|
- | |||||
| 7 | D7797807 | Fruit Pan, Lower |
|
- | |||||
| 8 | D7797808 | Pan, Fruit |
|
- | |||||
| 9 | D7782201 | Slide Crisper Cont. |
|
- | |||||
| 10 | D7807601 | Support |
|
- | |||||
| 11 | M0230017 | Screw,tc |
|
- | |||||
| 12 | C8913526 | Trim, Front Shelf |
|
- | |||||
| 13 | C8913610 | Trim, Glass Shelf |
|
- | |||||
| 14 | D7421293 | Glass Shelf |
|
- | |||||
| 15 | D7871010 | Assy, Glass Shelf |
|
- | |||||
| 16 | A3030305 | Gasket-per Ft |
|
- | |||||
| 17 | C8990406 | Trim M.k Top Rear |
|
- | |||||
| 18 | C8913525 | Trim, Front Shelf |
|
- | |||||
| 19 | D7862930 | Side Rail |
|
- | |||||
| 19 | D7862931 | Side Rail |
|
- | |||||
| 21 | D7869101 | Ext. Air Duct |
|
- | |||||
| 22 | D7698108 | Sleeve M.k. V |
|
- | |||||
| 23 | D7698319 | Meat Pan |
|
- | |||||
| 24 | D7859402 | Slide-mk Control |
|
- | |||||
| 25 | D7873601 | Grommet, Mk |
|
- | |||||
| 26 | D7869001 | Xduct M.k. Air |
|
- | |||||
| 27 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 28 | D7547607 | Rack, Bottle |
|
- | |||||
| 29 | D7789807 | Ladder Cantilever |
|
- | |||||
| 30 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 6.57 | ||||
| 31 | M0580007 | Grommet, Screw |
|
- | |||||
| 32 | B8393601 | 10043101 |
|
- | |||||
| 34 | D7421292 | Glass M K Shelf |
|
- | |||||
| 35 | D7853303 | Frame,meatkeeper |
|
- | |||||
| 36 | D7859502 | Band M.k. Control |
|
- | |||||
| NI | R0179127 | Crisper Top Assy |
|
- | |||||
| NI | R0179128 | Crisper Top Assy |
|
- | |||||
| NI | D7871809 | Assy, Glass Shelf |
|
- |
