Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7616625 Trim Appelez-nous -
2 D7781405 Basket, Freezer Appelez-nous -
3 D7781502 Freezer Shelf Appelez-nous -
4 D7788312 Shelf, Fz Wire Appelez-nous -
5 D7788313 Shelf, Frz Appelez-nous -
6 C8913519 Trim Appelez-nous -
7 C8913609 Trim Appelez-nous -
8 C8973801 Support, Frz Shelf Special Order $ 8.35

9 D7845101 Socket, Lamp Appelez-nous -
10 D7620109 Rack, Ice Appelez-nous -
11 10014707 Shield, Light Appelez-nous -
12 W11384469 Switch, Light   (Replaces: C3680308) In-Stock Immediately $ 35.18

13 D7863901 Housing, Frz Light Appelez-nous -
14 D7620014 Bin-utility Appelez-nous -
15 M0360402 Light Bulb (230/240 Vac) Appelez-nous -
16 67006425 Screw   (Replaces: M0230917) In-Stock Immediately $ 6.57

17 WPW10190972 Ice Maker, (220 V 50 Hz)   (Replaces: D7846301) Special Order $ 159.74

18 WP841180A Tray, Ice   (Replaces: D7725401) In-Stock Immediately $ 43.06

19 D7849901 Driver Appelez-nous -
20 D7849902 Glide, Freezer Rh Appelez-nous -
21 M0213529 Screw Appelez-nous -
22 C8973701 Plug, Frz Shelf Support Appelez-nous -
23 M0580007 Grommet, Screw Appelez-nous -
24 D7864101 Harness, Outer Liner Appelez-nous -
25 D7383435 Wire Jumper Appelez-nous -
27 10014709 Shield, Light, Ref Appelez-nous -
28 D7297602 Cover, Light Sw Appelez-nous -
29 D7716403 Housing-ref Light Appelez-nous -
30 D7383427 Jumper Wire Appelez-nous -
31 M0219559 Screw Appelez-nous -
32 M0270508 Washer Appelez-nous -
33 WP67001130 Plug   (Replaces: M0310709) In-Stock Immediately $ 7.39

34 A3069103 Plug Appelez-nous -
35 A4539626 Pop Rivet Appelez-nous -
36 A4554813 Snap Bushing Appelez-nous -
37 D7844801 Shield, Socket Appelez-nous -
38 M0217224 Screw Appelez-nous -
39 M0217225 Screw Appelez-nous -
41 M0320905 Terminal Ground A Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

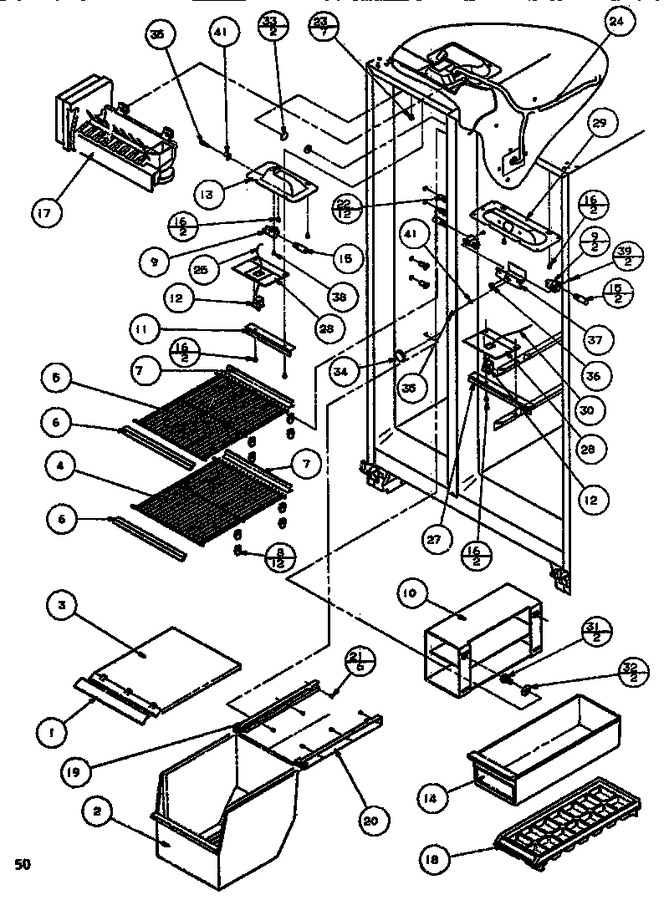

Diagram for SC519J (BOM: P7804505W)
