SELECT A DIAGRAM

Diagram for 01 - Cabinet Back
01 - Cabinet Back

Diagram for 02 - Cabinet Parts
02 - Cabinet Parts

Diagram for 03 - Drain Systems, Rollers, And Evap Assy
03 - Drain Systems, Rollers, And Evap Assy

Diagram for 04 - Fz Door
04 - Fz Door

Diagram for 05 - Fz Shelves And Light
05 - Fz Shelves And Light

Diagram for 06 - Ice & Water Cav/elec Brkt/& Toe Grille
06 - Ice & Water Cav/elec Brkt/& Toe Grille

Diagram for 07 - Ice Bucket Auger, Im & Im Parts
07 - Ice Bucket Auger, Im & Im Parts

Diagram for 08 - Ice Maker/control Assy
08 - Ice Maker/control Assy

Diagram for 09 - Machine Compartment
09 - Machine Compartment

Diagram for 10 - Ref Door
10 - Ref Door

Diagram for 11 - Ref/fz Shelves, Lights, And Hinges
11 - Ref/fz Shelves, Lights, And Hinges


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
35 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

203 M0753003 Nut, Sleeve Appelez-nous -
314 12041704 Assy, Mc Back Appelez-nous -
381 M0227217 Screw, Sm Appelez-nous -
382 M0227217 Screw, Sm Appelez-nous -
411 10581304 Ht Ex Cover- E Ct Appelez-nous -
431 A4554813 Snap Bushing Appelez-nous -
474 M0108001 Clamp, Tube Appelez-nous -
514 12039903 Back, M.c. Appelez-nous -
863 A1055101 Spring, Antikink Appelez-nous -
873 A1055105 Spring, Anti Kink Appelez-nous -
971 WP489474 Screw 1``   (Replaces: M0211021) In-Stock Immediately $ 8.55

1021 M0219758 Screw Appelez-nous -
1052 M0232330 Screw, Spextite Appelez-nous -
1113 681390 Screw   (Replaces: M0251015) Special Order $ 13.71

1133 D7827204 Valve, Water (220/240 Vac, 50 Special Order $ 113.44

1213 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

1221 WPM0114003 Clip, Speed   (Replaces: M0114003) Special Order $ 11.60

1263 WP627018 Nut, Sleeve   (Replaces: M0753001) Special Order $ 11.51

1303 10496302 Brkt, Water Valve Appelez-nous -
2061 A3189357 Gasket, Foam Appelez-nous -
2071 WPM0104106 Clip,cord   (Replaces: M0104101) Special Order $ 8.17

2544 M0201216 Screw - Sm Appelez-nous -
2641 B5669005 Cord, Power Appelez-nous -
2652 WPB2150504 Drier   (Replaces: B2150504) Special Order $ 136.98

2672 10547001 Clip, Drier Appelez-nous -
2761 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

3652 M0272803 Lock Washer Appelez-nous -
3661 10953201 Mount-cradle Appelez-nous -
4025 10945102 Harness-outer Cab Appelez-nous -
5071 C8969204 Block, Term Appelez-nous -
5081 Y10203701 Strain Relief Appelez-nous -
5091 10377602 Insulation, Term Block Appelez-nous -
5101 10786301 Jumper, Pwr Cord Appelez-nous -
5141 B5759643 Gasket Appelez-nous -
5504 M0227217 Screw, Sm Appelez-nous -
7283 M0253504 Screw Appelez-nous -
NI WPA3223101 Insert, Plastic Tube   (Replaces: A3223101) In-Stock Immediately $ 8.21


    View Diagram in Separate Window     Print Icon   Print Part List

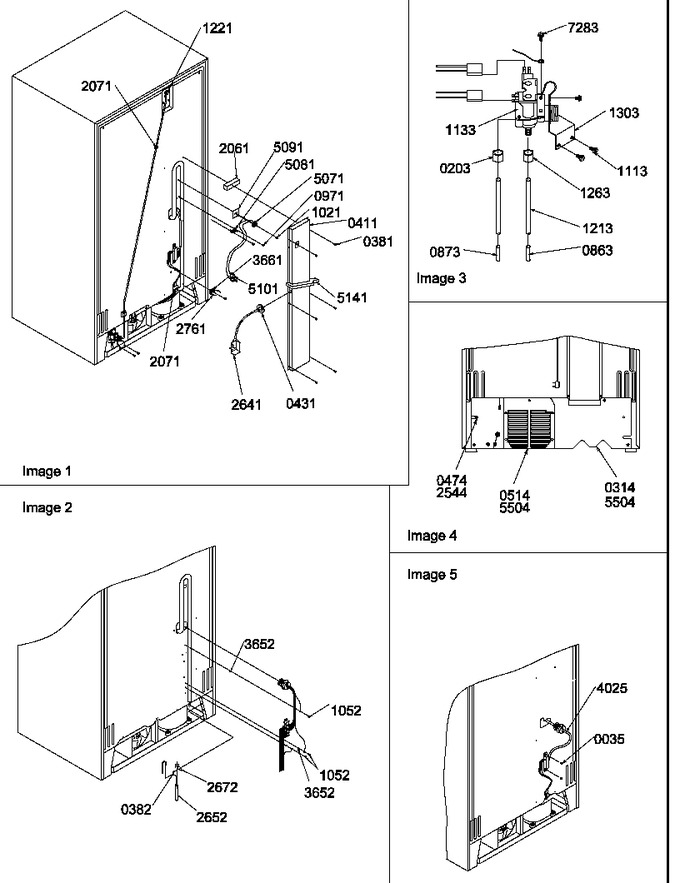

Diagram for SGD521SBW (BOM: P1197102W W)
