| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10881403W | Ass`y, Frz Door(white) |
|
- | |||||
| 21 | 10860902 | Liner, Frz Door |
|
- | |||||
| 31 | 10895501 | Insul, Ice Chute |
|
- | |||||
| 32 | R0181181 | Closure-w Door (Replaces: 12113201) |
|
Immediately | $ 7.55 | ||||
| 41 | 10895401 | Insul., I/w Cavity |
|
- | |||||
| 61 | M0216517 | Screw |
|
- | |||||
| 71 | D7791003 | Gasket Cavity |
|
- | |||||
| 72 | WP67004977 | Bushing, Top (Replaces: C8964401) |
|
$ 8.20 | |||||
| 81 | WPB5705307 | Tube, Plastic , 68`` (Replaces: B5705321) |
|
$ 13.05 | |||||
| 91 | B0523562 | Insul. By The Ft. |
|
- | |||||
| 101 | WP489399 | Screw, Se (Replaces: M0232929) |
|
$ 7.30 | |||||

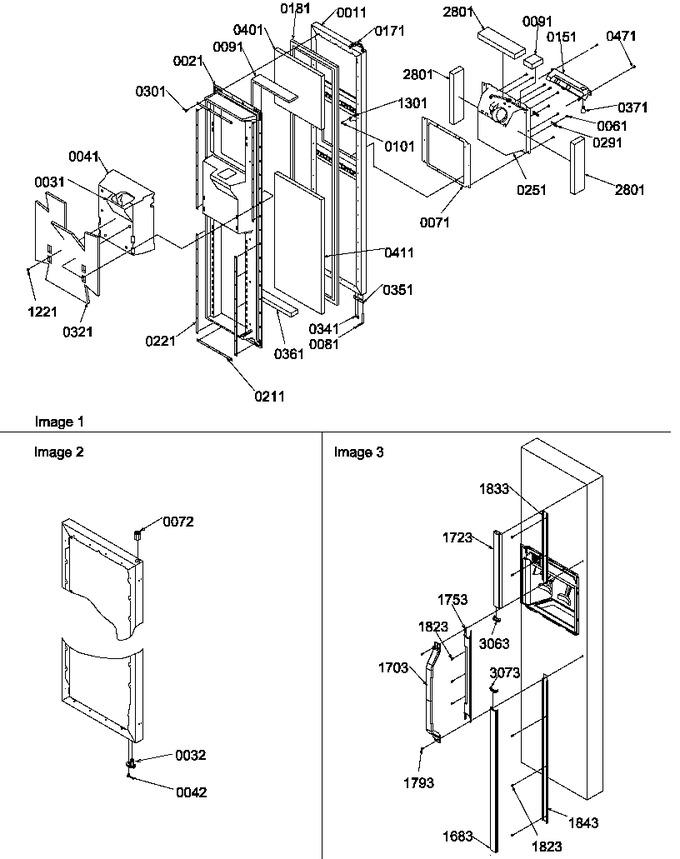

| 151 | Y00000000 | See Note Elec Brkt Assy -- (see Image 2 Pages 10 & 11 For Assy Breakdown) |
|
- | |||||
| 171 | 12053901 | Harness-fz Door |
|
- | |||||
| 181 | 10359702 | Gasket (w Frz Dr) |
|
- | |||||
| 211 | C8982801 | Retainer, Door Liner |
|
- | |||||
| 221 | D7828601 | Retainer, Door Liner |
|
- | |||||
| 251 | Y00000000 | See Note Bk Cavity Assy -- (see Image 1 Pages 10 & 11 For Assy Breakdown) |
|
- | |||||
| 291 | C8992901 | Clip |
|
- | |||||
| 301 | M0219730 | Screw |
|
$ 7.65 | |||||
| 321 | 10941501 | Insul, Batt |
|
- | |||||
| 341 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 351 | C8972403 | Stop, Door (blk) |
|
- | |||||
| 361 | 876370 | Insulation Bott (1= 1ft) (Replaces: B0523588) |
|
$ 243.14 | |||||
| 371 | M0360401 | Light Bulb (220/250) 6 Watt |
|
- | |||||
| 401 | 12016901 | Insul, Batt (ref. Door) |
|
- | |||||
| 411 | 12016902 | Insul, Batt (ref. Door) |
|
- | |||||
| 471 | M0216705 | Screw |
|
$ 5.81 | |||||
| 1221 | M0311601 | Plug, Button |
|
- | |||||
| 1301 | M0272803 | Lock Washer |
|
- | |||||
| 1683 | 10810511 | Trim, Bottom Door Ebony |
|
- | |||||
| 1703 | 12139303 | Handle, Door (black) |
|
- | |||||
| 1723 | 10810311 | Trim-e Top Fz Dr |
|
- | |||||
| 1753 | 10810603 | Trim- E Ctr I&w Dr |
|
- | |||||
| 1793 | R9800670 | Screw, Mounting (Replaces: M0223230) |
|
$ 10.58 | |||||
| 1823 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 | ||||
| 1833 | 10852212 | Ret-up Fz Trim |
|
- | |||||
| 1843 | 10852215 | Ret-lw Fz Trim |
|
- | |||||
| 2801 | B0523596 | Insul. By The Ft. |
|
- | |||||
| 3063 | 10953115 | Insert, Trim (black) |
|
- | |||||
| 3073 | 10953116 | Insert, Trim (black) |
|
- |
