Diagram # Part Number Description Series Availability Ships Price Add to Cart
12 10946004 Extr-rear Shelf Appelez-nous -
22 10875304 Frame, Glass Shelf Appelez-nous -
24 D7718402 Seal Crisper Appelez-nous -
32 10370076 Glass-shelf Appelez-nous -
34 10523402 Seal, Crisper Frt Appelez-nous -
42 10459909 Extr-front Shelf Appelez-nous -
44 10882902 Band, Crisper Appelez-nous -
54 D7860603 Slide Appelez-nous -
63 10370046 Glass, Shelf Appelez-nous -
64 Y10370045 Glass, Shelf Appelez-nous -
83 10470101 Frame, Crisper Appelez-nous -
84 10470102 Frame, Crisper Appelez-nous -
91 10033201 Deflector, Air Appelez-nous -
93 10873915 Trim-crisp Fr Appelez-nous -
94 10873916 Trim-crisp Fr Appelez-nous -
154 10038402 Knob - Crisper Appelez-nous -
181 R9800670 Screw, Tf   (Replaces: M0238731) Special Order $ 10.58

211 WP4373559 Union K   (Replaces: B5706901) Special Order $ 81.22

251 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

311 10014717 Shield, Light Appelez-nous -
351 M0580007 Grommet, Screw Appelez-nous -
421 M0360402 Light Bulb (230/240 Vac) Appelez-nous -
511 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

741 D7750602 Grille Sump (black) Appelez-nous -
761 10880703 Assy, Glass Shelf Appelez-nous -
1051 M0232330 Screw, Spextite Appelez-nous -
1291 M0108001 Clamp, Tube Appelez-nous -
1631 12187501 Shim, Top Hinge Appelez-nous -
1671 10849401 Cover W Hinge Appelez-nous -
1761 WP8281196 Screw-mach   (Replaces: M0202327) In-Stock Immediately $ 7.55

1801 12077312 Hinge, Top (e-ct) Appelez-nous -
1881 10471909 Pan-crisper Appelez-nous -
1891 10543750 Assy, Upr Crispr Frm Appelez-nous -
1901 10543749 Assy, Lwr Crisp Frm Appelez-nous -
2121 W11214483 Screw, Mach   (Replaces: M0202321) In-Stock Immediately $ 14.72

2131 10493202 Cover, Ref. Light Appelez-nous -
2141 M0238846 Screw-sm Appelez-nous -
2501 M0270508 Washer Appelez-nous -
2581 10521710 Bucket, Frz Dr Appelez-nous -
2591 10525511 Shelf, Frz Dr Appelez-nous -
3651 M0272803 Lock Washer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

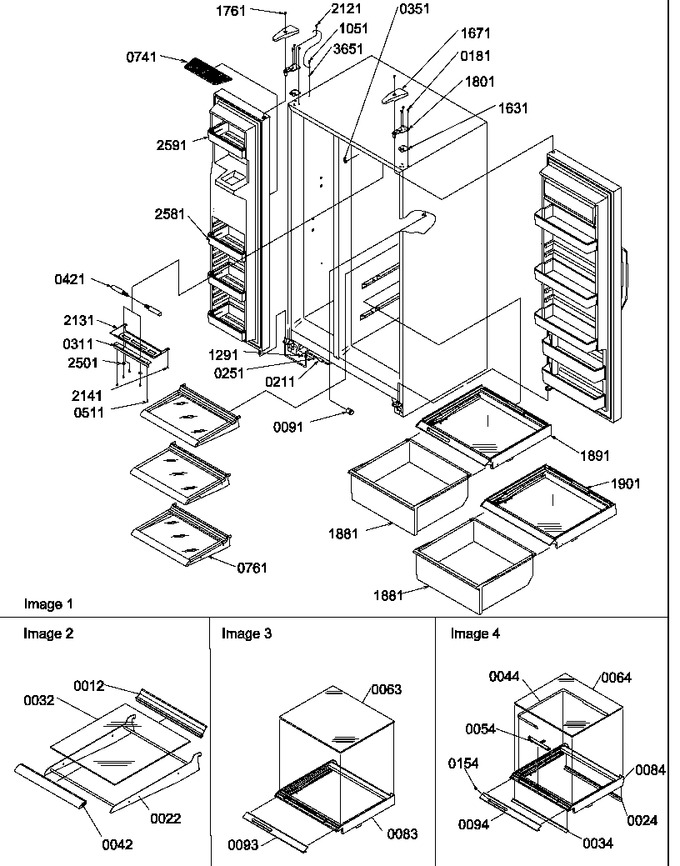

Diagram for SGD521SBW (BOM: P1197102W W)
