Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 A1061501 Pin, Chute Door Appelez-nous -
12 10323305 Bracket, Elec Mtg Appelez-nous -
21 A1061601 Retainer, Ice Arm Appelez-nous -
22 C8972703 Switch Appelez-nous -
23 M0117302 Clip, Grille Appelez-nous -
31 B8380701 Insulation, Chute Door Appelez-nous -
41 B8380801 Brkt-chute Door Appelez-nous -
42 M0237809 Screw, T.f. Appelez-nous -
51 B8380901 Spring,chute Door Special Order $ 7.18

61 B8385401 Spring, Return Appelez-nous -
72 C8988902 Switch, Cavity Light Appelez-nous -
81 W10819546 Clip, Facade   (Replaces: B8390302) Special Order $ 13.14

82 D7845102 Socket, Lamp Appelez-nous -
91 C8972501 Retainer Door Delay Appelez-nous -
92 D7383470 Wire, Jumper Appelez-nous -
101 C8973602 Delay, Door Special Order $ 49.84

102 D7383469 Wire-jumper Appelez-nous -
111 10876003 Cavity, Disp (black) Appelez-nous -
112 C8972704 Switch , Light Appelez-nous -
121 10246601 Kit,chute Dr No.3 Appelez-nous -
131 12102104 Arm, Ice Disp. Special Order $ 26.54

132 B5667304 Wire Clip Appelez-nous -
141 10872104 Arm,wtr Disp B Appelez-nous -
142 10131804 Cover Elect Brkt Appelez-nous -
151 10295902 Heater, Cavity Appelez-nous -
152 10295701 Bracket, Socket Mtg Appelez-nous -
161 M0211116 Screw, Sm Appelez-nous -
212 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43

232 10419402 Insulation, Dispenser Control Appelez-nous -
353 10870801 Shelf, Ice Cream Appelez-nous -
363 10492001 Assy, Toe Grille (black) Appelez-nous -
433 10986111 Facade- E Disp Appelez-nous -
443 M0219601 Screw Appelez-nous -
501 A3030357 Gasket Appelez-nous -
2103 10984620 Insert-e Facade Appelez-nous -
5003 10504101 Chute, Ice Appelez-nous -
5013 12044501 Gasket-ice Chute Appelez-nous -
NI R0156692 Kit,chute Dr No.3 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

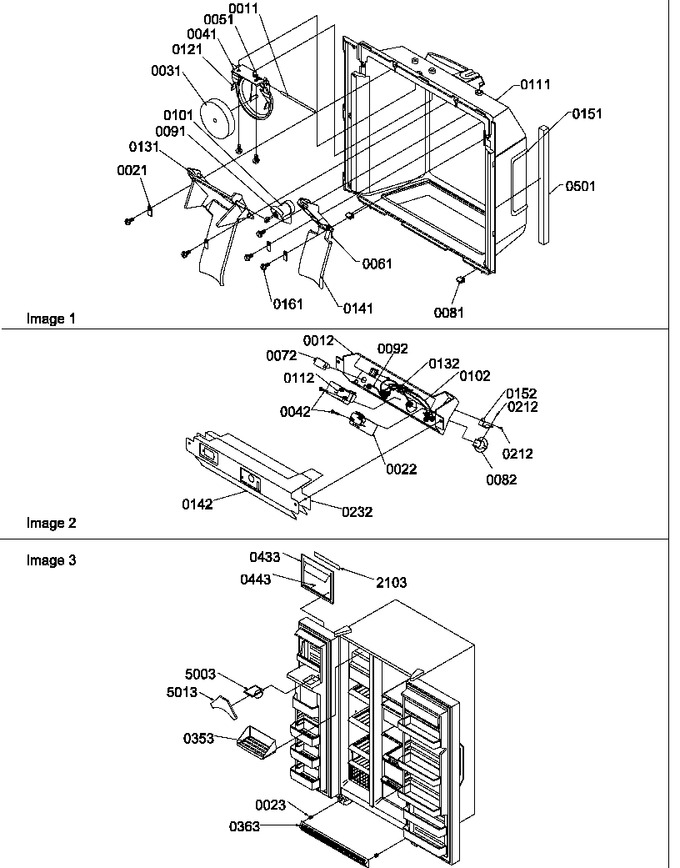

Diagram for SGD521SBW (BOM: P1197102W W)
