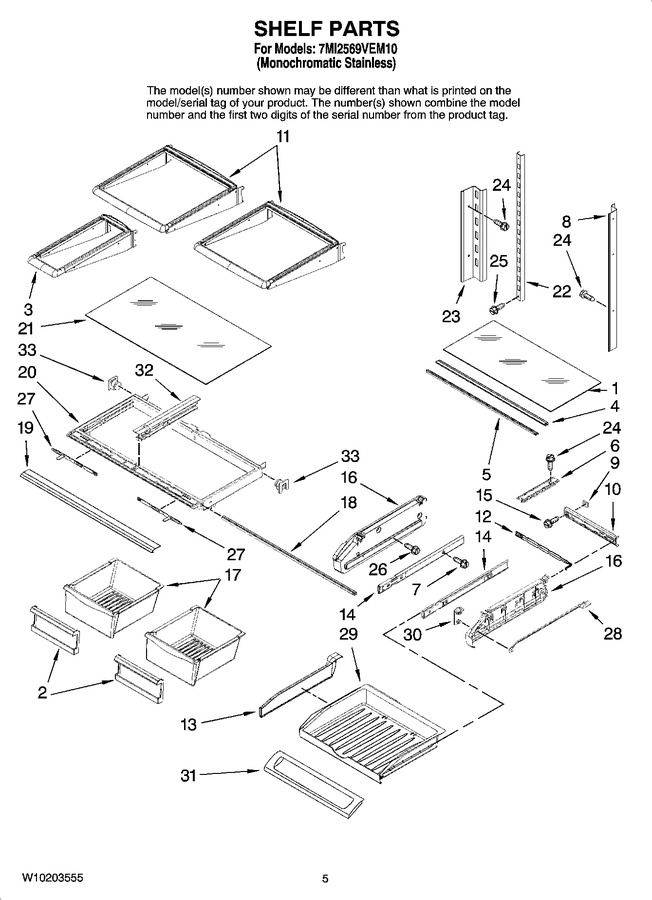

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67002761 | Glass, Pantry |
|
$ 103.45 | |||||
| 2 | WP67005923 | Front, Crisper Pan (2) (Replaces: 67005923) |
|
$ 79.13 | |||||
| 3 | W10187852 | Shelf, Mini (stationary) |
|
- | |||||
| 4 | W11812285 | Extr, Glass Support (2) (Replaces: 67006010) |
|
$ 53.33 | |||||
| 5 | WP12227305WD | Brace, Pantry (2) (Replaces: 67002330) |
|
$ 108.36 | |||||
| 6 | WP67001719 | Track, Pantry (Replaces: 67001719) |
|
Immediately | $ 8.99 | ||||
| 7 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.57 | |||||
| 8 | W10251965 | Ladder, Side (Replaces: W10165909) |
|
$ 31.08 | |||||
| 9 | 67002329 | Gasket, Pantry |
|
$ 22.09 | |||||
| 10 | 12656202 | Housing, Control (Replaces: 67005625) |
|
$ 148.84 | |||||
| 11 | W11402525 | Shelf, Glide (2) (Replaces: 67006351) |
|
$ 234.44 | |||||
| 12 | WP67003793 | Slide, Temperature (Replaces: 67003793) |
|
Immediately | $ 78.49 | ||||
| 13 | WP67002759 | Divider, Pantry Drawer (Replaces: 67002759) |
|
Immediately | $ 61.25 | ||||
| 14 | WPW10235370 | Glide, Drawer(2) (Replaces: 67007026) |
|
Immediately | $ 199.80 | ||||
| 15 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 7.30 | ||||
| 16 | W10874836 | Endcap, Pantry (left) (Replaces: 67005863) |
|
Immediately | $ 38.43 | ||||
| 16 | W10874836 | Endcap, Pantry (right) (Replaces: 67005858) |
|
Immediately | $ 38.43 | ||||
| 17 | WP67004515 | Pan, Crisper (2) (Replaces: 67004515) |
|
Immediately | $ 176.72 | ||||
| 18 | WP12642303WD | Brace, Crisper Cover (Replaces: 67002748) |
|
$ 112.26 | |||||
| 19 | WPW10231345 | Trim, Crisper (Replaces: 67004510) |
|
$ 137.67 | |||||
| 20 | WP67003854 | Frame, Crisper (Replaces: 67003854) |
|
Immediately | $ 227.55 | ||||
| 21 | WP67006704 | Glass, Crisper Cover (Replaces: 67006704) |
|
$ 212.77 | |||||
| 22 | 67006358 | Ladder, Center |
|
- | |||||
| 23 | 67006354 | Ladder, Side |
|
- | |||||
| 24 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 7.30 | ||||
| 25 | W10709795 | Screw (2) (Replaces: 67006360) |
|
$ 13.79 | |||||
| 26 | WP67006415 | Screw (Replaces: 67006415) |
|
$ 8.38 | |||||
| 27 | WP67005864 | Slide, Humidity Control (Replaces: 67005864) |
|
Immediately | $ 8.20 | ||||
| 28 | WP67003795 | Rod, Temperature Control (Replaces: 67003795) |
|
$ 8.45 | |||||
| 29 | WP67003531 | Drawer, Pantry (Replaces: 67003531) |
|
$ 162.82 | |||||
| 30 | W11498983 | Knob, Temperature Control (Replaces: 67003791) |
|
$ 30.64 | |||||
| 31 | W10827015 | Door, Pantry Drawer (Replaces: 67005903) |
|
Immediately | $ 175.81 | ||||
| 32 | WPW10326469 | Rail, Center Crisper Frame (Replaces: 67004514) |
|
Immediately | $ 33.37 | ||||
| 33 | WP12603701 | Supports, Crisper Frame (Replaces: 12603701) |
|
$ 10.83 |
