SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts

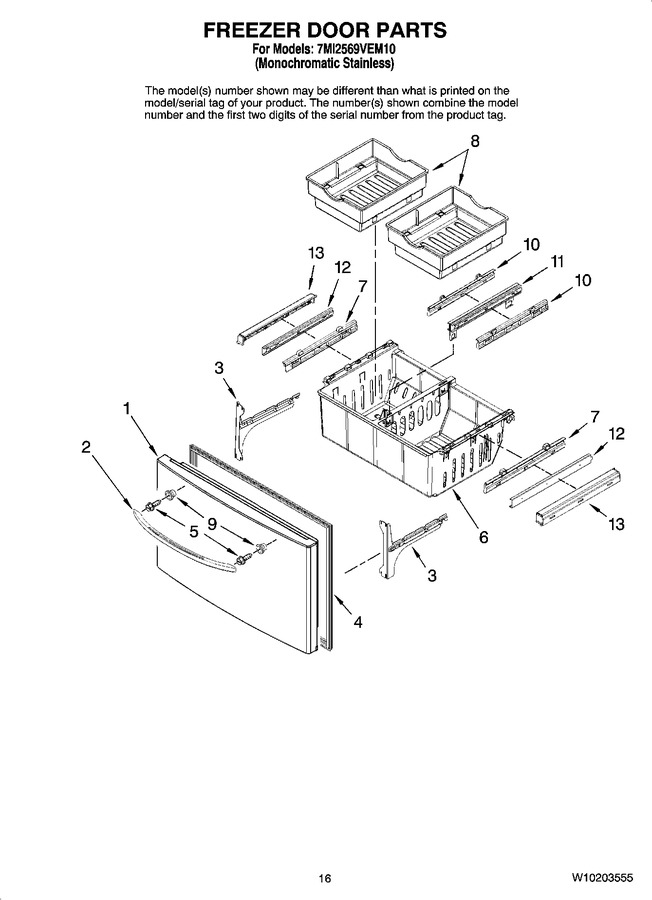

09 - Freezer Door Parts


10 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10191131		Freezer Door (stainless)		Appelez-nous	-
2	WPW10138763		Handle, Door (stainless)   (Replaces: W10138763)				$ 279.87
3	WPW10330991		Bracket, Door Slide (left)   (Replaces: W10122147)				$ 164.31
3	WPW10330993		Bracket, Door Slide (right)   (Replaces: W10122148)				$ 166.09
4	WPW10714545		Gasket, Door (apollo Grey)   (Replaces: W10164045)				$ 323.60
5	WP3387230		Screw, Handle   (Replaces: 67002935)			Immediately	$ 8.54
6	67006366		Bin, Lower				$ 69.67
7	W10166742		Adapter, Bin (outer)				$ 98.12
8	WP12924903		Bin, Upper   (Replaces: W10166237)				$ 132.30
9	WP67006113		Mount, Handle   (Replaces: 67006113)			Immediately	$ 12.56
10	12925404SP		Adapter, Bin (inner)   (Replaces: W10163002)				$ 45.32
11	WPW10235357		Bracket/glide Assembly   (Replaces: 67006372)			Immediately	$ 330.98
12	WPW10235367		Glide, Upper   (Replaces: 67006369)				$ 313.43
13	W10826788		Retainer, Glide (left)   (Replaces: 67006367)				$ 57.50
13	WP67006368		Retainer, Glide (right)   (Replaces: 67006368)				$ 192.90

    View Diagram in Separate Window       Print Part List
