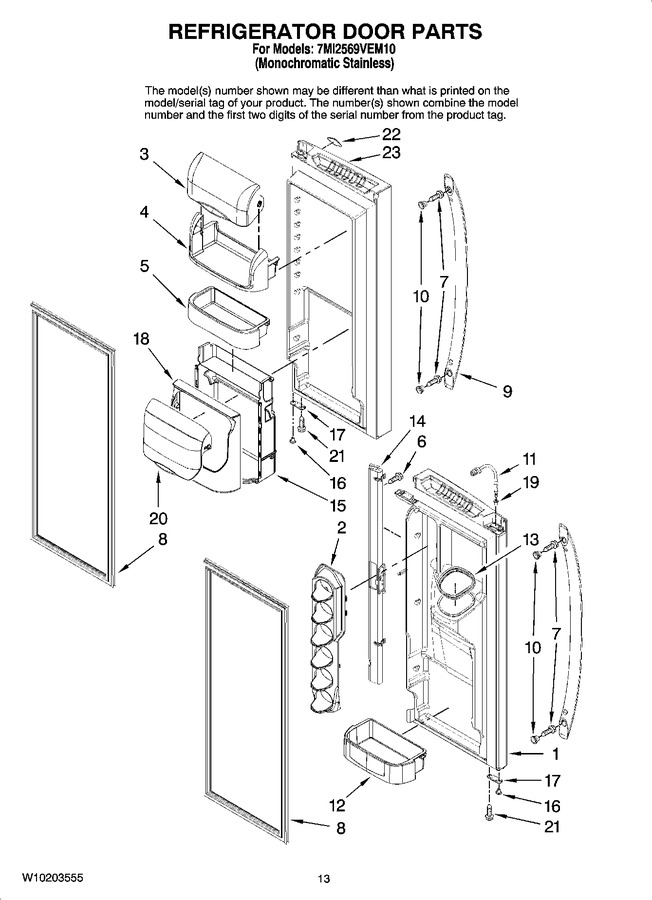

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10191138 | Door, Left (stainless) |
|
- | |||||
| 2 | 67006311 | Dispenser, Can |
|
$ 36.65 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 67003637) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 88.01 | ||||
| 5 | WP67006313 | Bin, Shelf (chiller Top) (Replaces: 67006313) |
|
Immediately | $ 84.62 | ||||
| 6 | W11311945 | Screw (Replaces: 67006786) |
|
$ 14.72 | |||||
| 7 | WP3387230 | Screw, Handle (Replaces: 67002935) |
|
Immediately | $ 8.54 | ||||
| 8 | W10830055 | Gasket, Door (apollo Grey) (Replaces: W10163991) |
|
Immediately | $ 229.10 | ||||
| 9 | W11690159 | Handle, Door (stainless) (Replaces: W10197295) |
|
$ 173.76 | |||||
| 10 | WP67006113 | Mount, Handle (Replaces: 67006113) |
|
Immediately | $ 12.56 | ||||
| 11 | 12962106 | Waterline, Door |
|
$ 133.09 | |||||
| 12 | WP12840004 | Bin, Shelf (gallon) (Replaces: W10187434) |
|
$ 94.89 | |||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: 67007108) |
|
Immediately | $ 32.76 | ||||
| 14 | WP12722813AP | Mullion, Door (apollo Grey) (Replaces: W10191104) |
|
$ 340.89 | |||||
| 15 | W11266639 | Frame, Chiller (rear) (Replaces: 67006315) |
|
$ 269.63 | |||||
| 16 | WP12028505AP | Closure, Door (apollo Grey) (Replaces: W10191100) |
|
Immediately | $ 61.46 | ||||
| 17 | W11703060 | Stop, Door (apollo Grey) (Replaces: W10191119) |
|
$ 15.46 | |||||
| 18 | W11266639 | Frame, Chiller (front) (Replaces: 67006314) |
|
$ 269.63 | |||||
| 19 | 12996601 | Clip, Bushing Wire (left Door) (Replaces: 67005954) |
|
$ 10.05 | |||||
| 20 | WP67006312 | Door, Chiller (Replaces: 67006312) |
|
Immediately | $ 86.29 | ||||
| 21 | WP98165 | Screw (Replaces: 67006473) |
|
$ 8.57 | |||||
| 22 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 70.50 | ||||
| 23 | W10191134 | Door, Right (stainless) |
|
- |
