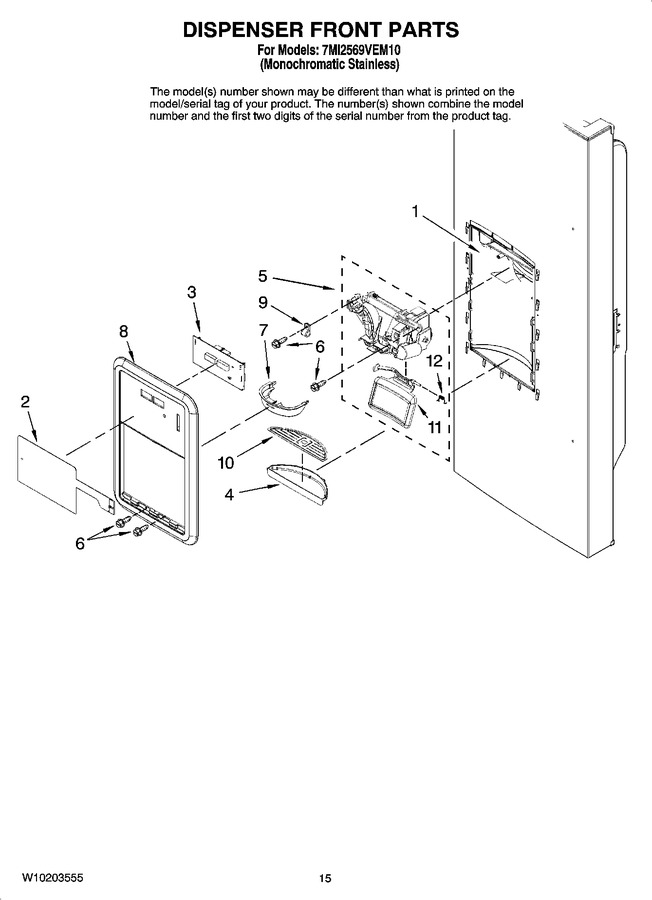

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W10740217 | Dispenser Keyboard (stainless) (Replaces: W10164471) |
|
Immediately | $ 236.00 | ||||
| 3 | 67006294 | Board, L.v. |
|
$ 257.17 | |||||
| 4 | W10185235 | Sump, Dispenser (midnight Grey (dark)) |
|
$ 28.47 | |||||
| 5 | WP13005705 | Chute, Ext/yoke (includes Switch) (midnight Grey (dark)) (Replaces: W10192824) |
|
Immediately | $ 329.03 | ||||
| 6 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 6.95 | ||||
| 7 | 67006295 | Ring, Target |
|
$ 52.92 | |||||
| 8 | WPW10310688 | Facade, Dispenser (apollo Grey W/stainless Insert) (Replaces: W10142273) |
|
$ 221.08 | |||||
| 9 | M0108106 | Clamp, Tube |
|
$ 66.62 | |||||
| 10 | W10142275 | Grille, Sump |
|
$ 29.42 | |||||
| 11 | WPW10185233 | Yoke/pad Assy. (midnight Grey (dark)) (Replaces: W10185233) |
|
$ 81.36 | |||||
| 12 | WP12565502 | Spring (Replaces: 12565502) |
|
$ 7.81 |
