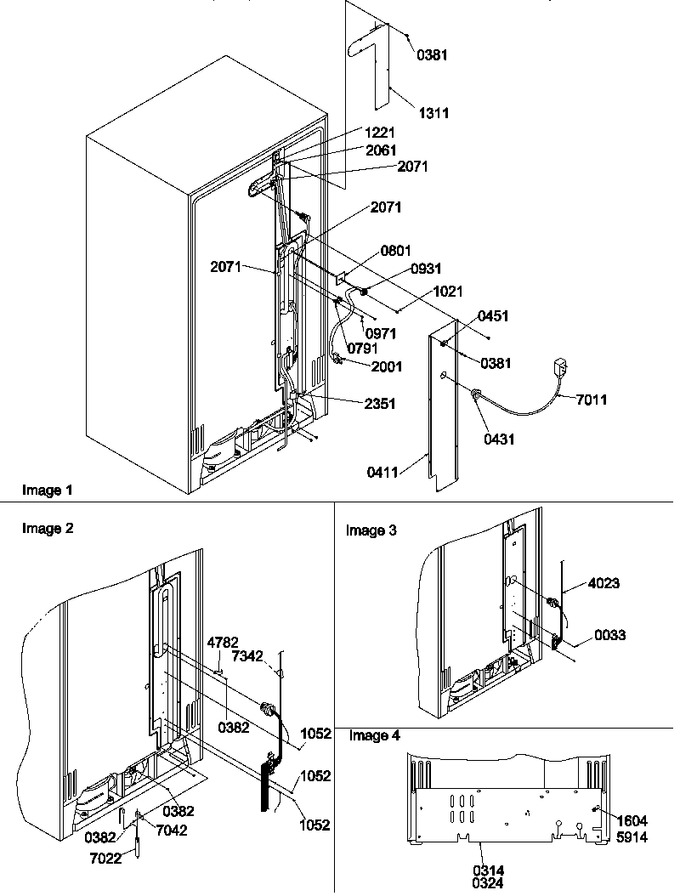

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
33	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
314	D7788914		Assy,mc Back		Appelez-nous	-
324	M0201216		Screw - Sm		Appelez-nous	-
381	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
382	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
411	10178406		Cover, O.c.back		Appelez-nous	-
431	A4554813		Snap Bushing		Appelez-nous	-
451	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 11.54
791	Y10203701		Strain Relief		Appelez-nous	-
801	10377602		Insulation, Term Block		Appelez-nous	-
931	C8969204		Block, Term		Appelez-nous	-
971	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 8.55
1021	M0219758		Screw		Appelez-nous	-
1052	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
1221	M0310319		Plug Button		Appelez-nous	-
1311	10178505		Cover - Wire		Appelez-nous	-
1604	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 11.54
2001	10786301		Jumper, Pwr Cord		Appelez-nous	-
2061	A3189336		Gasket, Foam		Appelez-nous	-
2071	WPM0104106		Clip   (Replaces: M0104106)				$ 8.17
2351	M0104102		Clip, Cord				$ 8.10
4023	10893702		Harness, Cabinet		Appelez-nous	-
4782	B5794201		Clamp		Appelez-nous	-
5914	M0227217		Screw, Sm		Appelez-nous	-
7011	B5669014		Cord, Power		Appelez-nous	-
7022	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
7042	10547001		Clip, Drier		Appelez-nous	-
7342	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
