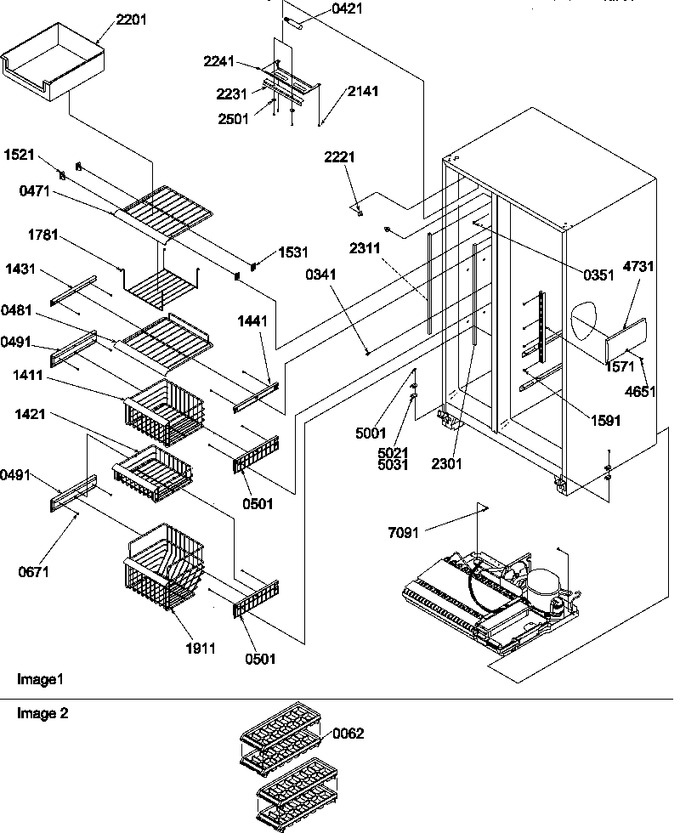

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 62 | WP841180A | Tray, Ice (Replaces: D7725401) |
|
Immediately | $ 47.84 | ||||
| 341 | M0322202 | Tie Wire |
|
- | |||||
| 351 | M0580007 | Grommet, Screw |
|
- | |||||
| 421 | M0360402 | Light Bulb (230/240 Vac) |
|
- | |||||
| 471 | 12013801 | Shelf, Stat. Freezer |
|
- | |||||
| 481 | 12012101 | Shelf, Freezer Wire |
|
- | |||||
| 491 | 12012901 | Rail, L. Dbl Shelf |
|
- | |||||
| 501 | 10991601 | Rail- R Double |
|
- | |||||
| 671 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 1411 | 12011801 | Basket, 7`` Freezer |
|
- | |||||
| 1421 | 12011701 | Basket, 3`` Freezer |
|
- | |||||
| 1431 | 12012801 | Rail, L. Shelf |
|
- | |||||
| 1441 | 10991401 | Rail- R Shelf |
|
- | |||||
| 1521 | 10941202 | Support, L Shelf |
|
- | |||||
| 1531 | WP10941102 | Support, Shelf (rt) |
|
$ 11.81 | |||||
| 1571 | D7599003 | Ladder, Center |
|
- | |||||
| 1591 | M0238636 | Screw-sm |
|
- | |||||
| 1781 | 12013901 | Rack, Freezer |
|
- | |||||
| 1911 | 12011901 | Basket, 11`` Freezer |
|
- | |||||
| 2141 | M0238846 | Screw-sm |
|
- | |||||
| 2201 | D7806201 | Pan, Ice |
|
- | |||||
| 2221 | M0310305 | Plug, Button (wht) |
|
- | |||||
| 2231 | 10014715 | Shield, Light |
|
- | |||||
| 2241 | 10493302 | Cover, Frz Light |
|
- | |||||
| 2301 | A3189347 | Gasket |
|
- | |||||
| 2311 | A3189346 | Gasket |
|
- | |||||
| 2501 | M0270508 | Washer |
|
- | |||||
| 4651 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 4731 | Y10270101 | Cover-light |
|
- | |||||
| 5001 | W11227370 | Screw, Lock Brake Mounting (Replaces: M0220418) |
|
Immediately | $ 14.91 | ||||
| 5021 | B8387701 | Shim, Door Closure |
|
- | |||||
| 5031 | B8387702 | Shim, Door Closure |
|
- | |||||
| 7091 | WP22002933 | Screw, Sm (Replaces: M0211357) |
|
$ 8.06 |
