SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts And Toe Grille


03 - Control Assy


04 - Drain System, Rollers, And Evap Assy


05 - Fz Door


06 - Fz Shelves, Light And Accessories


07 - Handles, Trim, And Toe Grille Kits


08 - Machine Compartment


09 - Ref Door


10 - Ref/fz Shelves, Lights, And Hinges


11 - Shelves, Deli, & Crisper Assy & Accs

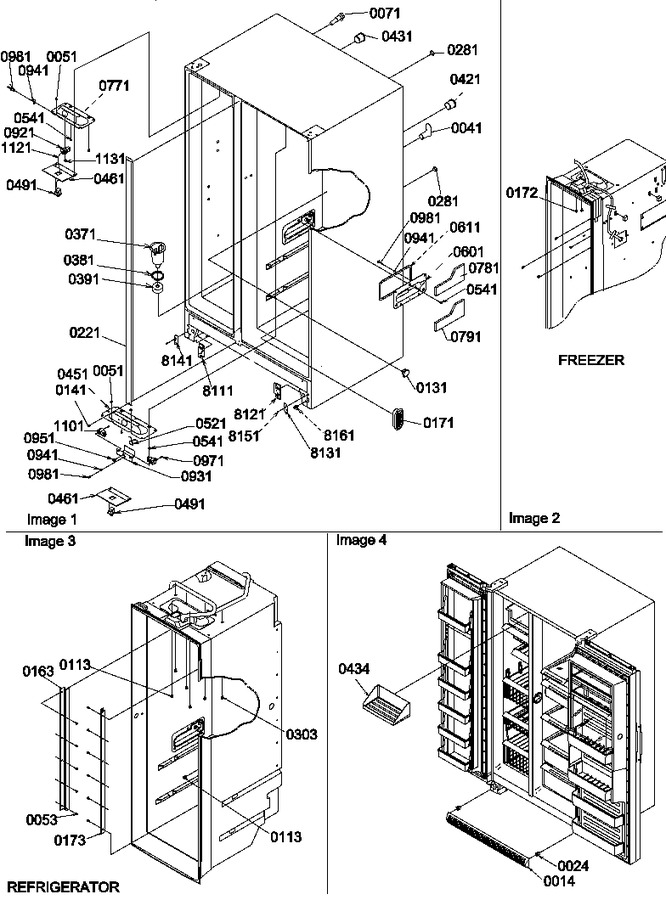

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	10470302		Assy, Toe Grille (white)		Appelez-nous	-
24	M0117303		Clip, Grille				$ 5.65
41	C8971902		Tunnel, Heat Ex.		Appelez-nous	-
51	A1781112		Cap-vinyl Tube		Appelez-nous	-
53	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
71	12023401		Assy, Fill Tube		Appelez-nous	-
113	M0580007		Grommet, Screw		Appelez-nous	-
131	10923101		Tunnel, Retainer		Appelez-nous	-
141	12991101		Screw, Sm   (Replaces: M0210816)				$ 13.47
163	D7789808		Ladder, Cantilever		Appelez-nous	-
171	D7785402		Grille-rtn Air		Appelez-nous	-
172	M0580007		Grommet, Screw		Appelez-nous	-
173	D7789809		Ladder, Cantilever		Appelez-nous	-
221	Y00000000		See Note W Vt Mull-pnt		Appelez-nous	-
281	A3080001		Plug, Button (blk)		Appelez-nous	-
303	M0581001		Grommet, Screw		Appelez-nous	-
371	W10815413		Funnel, Drain   (Replaces: D7753902)			Immediately	$ 51.50
381	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 11.47
391	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 7.78
421	10187501		Tunnel Wire		Appelez-nous	-
431	10187601		Tunnel Wire		Appelez-nous	-
434	10870801		Shelf, Ice Cream		Appelez-nous	-
451	D7716410		Housing-ref Light		Appelez-nous	-
461	D7297603		Cover, Light Sw		Appelez-nous	-
491	W11384469		Switch, Light   (Replaces: C3680308)			Immediately	$ 39.09
521	12138402		Harness-ref Light		Appelez-nous	-
541	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
601	10270202		Housing Light		Appelez-nous	-
611	A3189337		Gasket		Appelez-nous	-
771	D7863903		Housing Freezer Light		Appelez-nous	-
781	10906503		Insulation, L.foot		Appelez-nous	-
791	10906501		Insulation, R Foot		Appelez-nous	-
921	D7845102		Socket, Lamp		Appelez-nous	-
931	D7844803		Socket Shield		Appelez-nous	-
941	M0320905		Terminal Ground A		Appelez-nous	-
951	A4554813		Snap Bushing		Appelez-nous	-
971	M0217225		Screw		Appelez-nous	-
981	A4539626		Pop Rivet		Appelez-nous	-
1101	D7845101		Socket, Lamp		Appelez-nous	-
1121	D7383435		Wire Jumper		Appelez-nous	-
1131	M0217224		Screw		Appelez-nous	-
8111	12146602		Strip-lh Bot Hinge		Appelez-nous	-
8121	12146601		Strip-rh Bot Hinge		Appelez-nous	-
8131	12146801		Spacer, Btm Hinge		Appelez-nous	-
8141	12146802		Shim-lh Bot Hinge		Appelez-nous	-
8151	A4539631		Rivet, Pop (wht)		Appelez-nous	-
8161	12147602		Cam-hinge Adj		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
