SELECT A DIAGRAM
New Model Search:

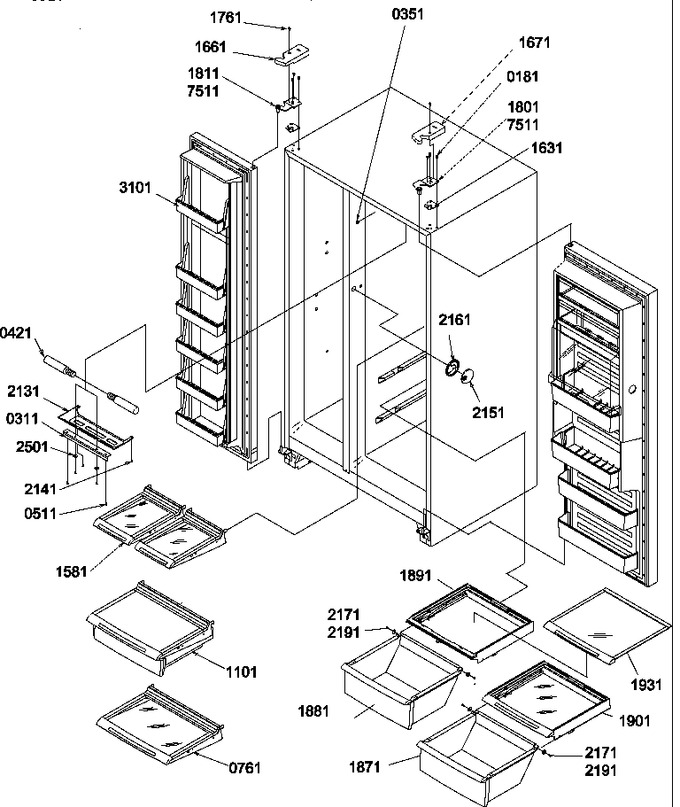

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 181 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 311 | 10014716 | Shield, Light |
|
- | |||||
| 351 | M0580007 | Grommet, Screw |
|
- | |||||
| 421 | M0360402 | Light Bulb (230/240 Vac) |
|
- | |||||
| 511 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 761 | 10883317 | Assy Shelf |
|
- | |||||
| 1101 | 10877219 | Assy, Deli Shelf |
|
- | |||||
| 1581 | 10883316 | Assy, Split Glide Shelf |
|
- | |||||
| 1631 | 12223003 | Shim, Top Hinge |
|
- | |||||
| 1661 | 10849401 | Cover W Hinge |
|
- | |||||
| 1761 | WP8281196 | Screw-mach (Replaces: M0202327) |
|
Immediately | $ 7.55 | ||||
| 1801 | 12077312 | Hinge, Top (e-ct) |
|
- | |||||
| 1871 | 10783301 | Pan, Crisper |
|
- | |||||
| 1881 | 10783201 | Pan,crisper |
|
- | |||||
| 1891 | 10882801 | Assy, Crisper Frame |
|
- | |||||
| 1901 | 10882809 | Assy, Crisp Frame |
|
- | |||||
| 1931 | 10783108 | Shelf-top Crisper |
|
- | |||||
| 2131 | 10493202 | Cover, Ref. Light |
|
- | |||||
| 2141 | M0238846 | Screw-sm |
|
- | |||||
| 2151 | 10164808 | Grille, Control |
|
- | |||||
| 2161 | 10164702 | Control-air |
|
- | |||||
| 2171 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 2191 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 10.79 | |||||
| 2501 | M0270508 | Washer |
|
- | |||||
| 3101 | 10525513 | Shelf, Frz Dr |
|
- |
