Diagram # Part Number Description Series Availability Ships Price Add to Cart
41 C8971902 Tunnel, Heat Ex. Appelez-nous -
53 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

71 12023401 Assy, Fill Tube Appelez-nous -
113 M0580007 Grommet, Screw Appelez-nous -
131 10923101 Tunnel, Retainer Appelez-nous -
141 12991101 Screw, Sm   (Replaces: M0210816) Special Order $ 13.47

163 12231603 Ladder, Cant. Appelez-nous -
171 D7785402 Grille-rtn Air Appelez-nous -
172 M0580007 Grommet, Screw Appelez-nous -
221 Y00000000 See Note Appelez-nous -
281 A3080001 Plug, Button (blk) Appelez-nous -
303 M0581001 Grommet, Screw Appelez-nous -
371 W10815413 Funnel, Drain   (Replaces: D7753903) In-Stock Immediately $ 51.50

381 WPM0500703 Seal, O Ring   (Replaces: M0500703) Special Order $ 11.47

391 WPB8381501 Gasket, Drain Tube   (Replaces: B8381501) Special Order $ 7.78

421 10187501 Tunnel Wire Appelez-nous -
431 10187601 Tunnel Wire Appelez-nous -
451 D7760104 Housing, Light Appelez-nous -
461 D7297604 Cover, Light Sw Appelez-nous -
491 W11384469 Switch, Light/intr`lk   (Replaces: 12466102) In-Stock Immediately $ 39.09

511 W11396033 Switch, Light/intrlk   (Replaces: 12466101) In-Stock Immediately $ 37.30

521 B5733302 Clip, Ground Appelez-nous -
541 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

551 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

601 10270203 Housing, Light Appelez-nous -
611 A3189337 Gasket Appelez-nous -
771 10906501 Insulation, R Foot Appelez-nous -
781 10906503 Insulation, L.foot Appelez-nous -
861 12146602 Strip-lh Bot Hinge Appelez-nous -
871 12146601 Strip-rh Bot Hinge Appelez-nous -
881 12146803 Spacer, Btm Hinge Appelez-nous -
911 B5642901 Rivet, Pop (wht) Appelez-nous -
7911 12187603 Shim, Bottom Hinge Metal Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

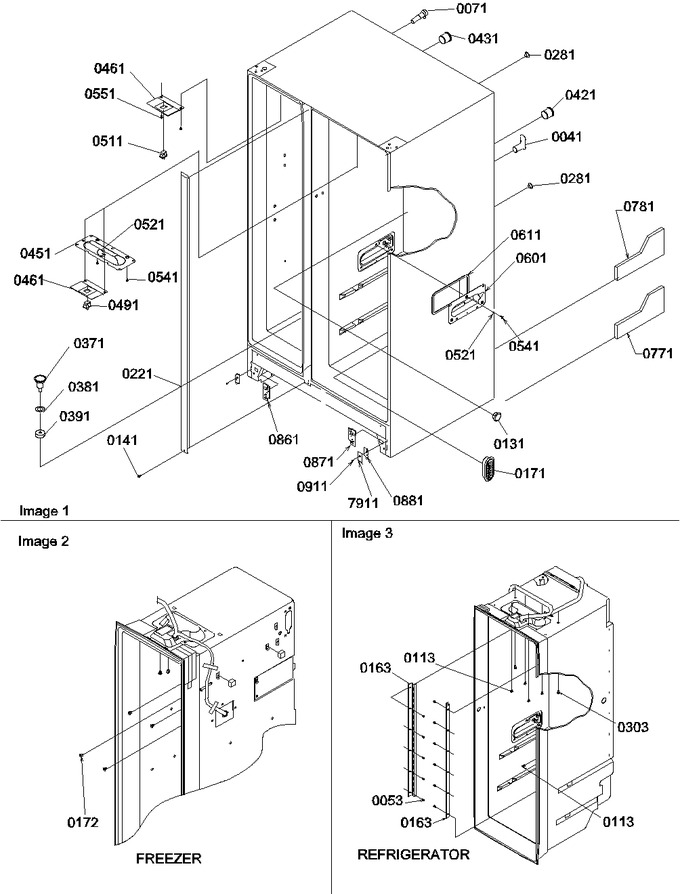

Diagram for SRD23VE (BOM: P1315306W E)
