Diagram # Part Number Description Series Availability Ships Price Add to Cart
12 10883327 Assy, Shelf-split Glass Appelez-nous -
13 10783109 Shelf-top Crisper Appelez-nous -
22 10883328 Shelf,full Glide(assy) Appelez-nous -
23 10882801 Assy, Crisper Frame Appelez-nous -
33 10882808 Assy, Crisp Frame Appelez-nous -
42 12373101 Ladder, Center Appelez-nous -
43 10783201 Pan,crisper Appelez-nous -
52 M0238636 Screw-sm Appelez-nous -
53 10481001 Roller, Pan Special Order $ 10.99

63 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

181 R9800670 Screw, Tf   (Replaces: M0238731) Special Order $ 10.58

211 WP4373559 Union K   (Replaces: B5706901) Special Order $ 81.22

251 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

311 10014716 Shield, Light Appelez-nous -
351 M0580007 Grommet, Screw Appelez-nous -
421 40A15 Bulb, Light (40 Watt)   (Replaces: A0282803) In-Stock Immediately $ 1.98

511 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

731 10426801 Clip, Air Tunnel Appelez-nous -
1291 W10833902 Clamp, Tube   (Replaces: M0108105) Special Order $ 11.54

1631 12428101 Shim, Top Hinge Appelez-nous -
1661 10863501 Foil, Hng Cov Appelez-nous -
1671 10849408 Cover E Hinge Appelez-nous -
1761 WP8281196 Screw-mach   (Replaces: M0202327) In-Stock Immediately $ 7.55

1801 12426201 Hinge, Top (e-ct) Appelez-nous -
1811 M0270508 Washer Appelez-nous -
2121 W11214483 Screw, Mach   (Replaces: M0202321) Special Order $ 14.72

2131 10493302 Cover, Frz Light Appelez-nous -
2141 M0238846 Screw-sm Appelez-nous -
2151 10164813 Grille, Control Appelez-nous -
2161 10164702 Control-air Appelez-nous -
4001 R0181181 Closure, Door (blk)   (Replaces: 12431302) In-Stock Immediately $ 7.55

4011 WP8281227 Screw, Tc   (Replaces: M0220432) Special Order $ 10.96

4021 WP67005716 Shim, Dr Closure (blk)   (Replaces: 10361806) Special Order $ 7.83

4031 10361804 Shim, Dr Bushing Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

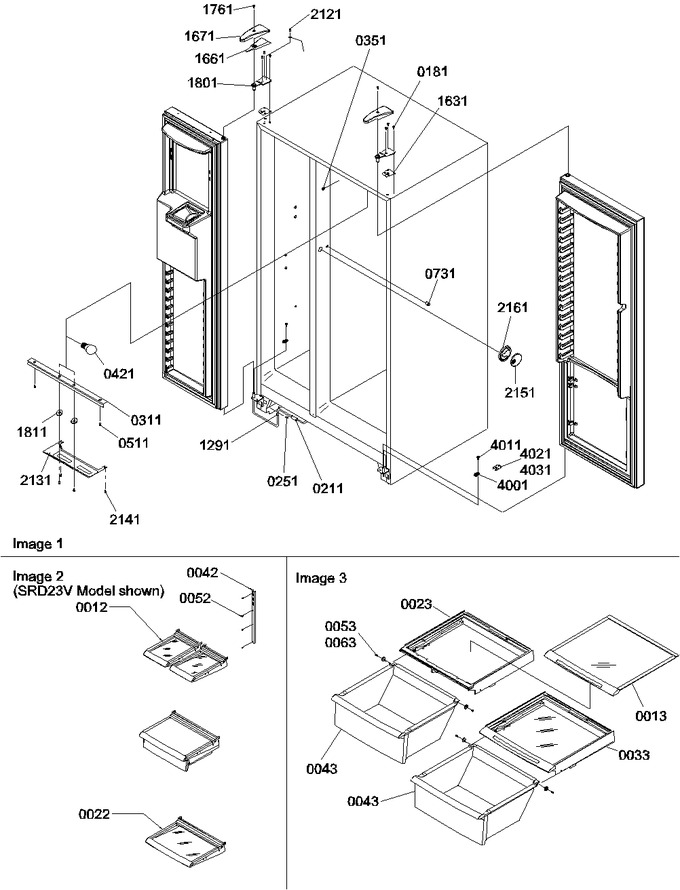

Diagram for SRD23VE (BOM: P1315306W E)
