Diagram # Part Number Description Series Availability Ships Price Add to Cart
12 12314701 Basket, Frz 13`` Appelez-nous -
22 12314801 Basket, Frz 12`` Appelez-nous -
32 12353305 Shelf, Sta Frz Appelez-nous -
42 12363402 Shelf, Sta Frz Appelez-nous -
52 12015101 Rail, Shelf (lt) Appelez-nous -
53 12015101 Rail, Shelf (lt) Appelez-nous -
62 10972801 Rail, Shelf (rt) Appelez-nous -
63 10972801 Rail, Shelf (rt) Appelez-nous -
92 C8973801 Support, Frz Shelf Special Order $ 8.35

102 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

103 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

111 D7714407 Socket-light Appelez-nous -
112 12314101 Trim, Basket/shelf Appelez-nous -
113 12314101 Trim, Basket/shelf Appelez-nous -
121 D7753503 Plate-light Socket Appelez-nous -
122 12314102 Trim, Basket/shelf Appelez-nous -
131 D7786603 Shield, Light Appelez-nous -
341 M0322202 Tie Wire Appelez-nous -
351 M0580007 Grommet, Screw Appelez-nous -
421 40A15 Bulb, Light (40 Watt)   (Replaces: A0282803) In-Stock Immediately $ 1.98

511 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

801 B5733302 Clip, Ground Appelez-nous -
1851 A3189335 Gasket Foam Appelez-nous -
2021 M0560005 Support Appelez-nous -
2341 WP22002933 Screw, Sm   (Replaces: M0211357) Special Order $ 8.06


    View Diagram in Separate Window     Print Icon   Print Part List

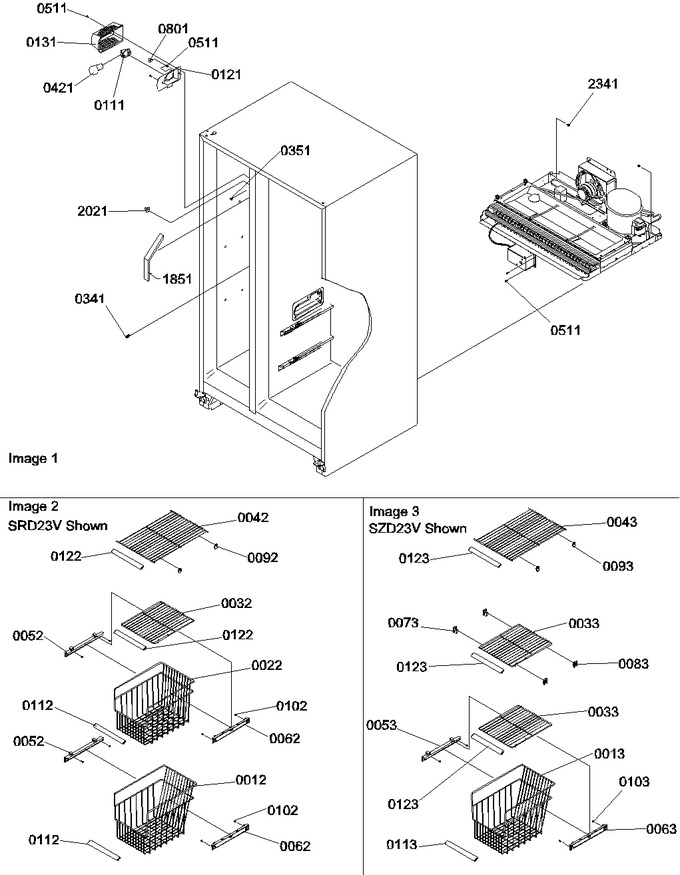

Diagram for SRD23VE (BOM: P1315306W E)
