SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Deli, Shelves, And Crisper Assy


04 - Drain, Rollers And Evap Assy


05 - Facade Dispenser Cover, Elec Brkt Assy


06 - Freezer Door


07 - Freezer Shelves & Lights


08 - Ice Bucket Auger And Ice Maker Parts


09 - Ice Maker/control Assy


10 - Lights, Hinges And Shelving


11 - Machine Compartment


12 - Refr. Door, Trim And Handles


13 - Water Filter Assy

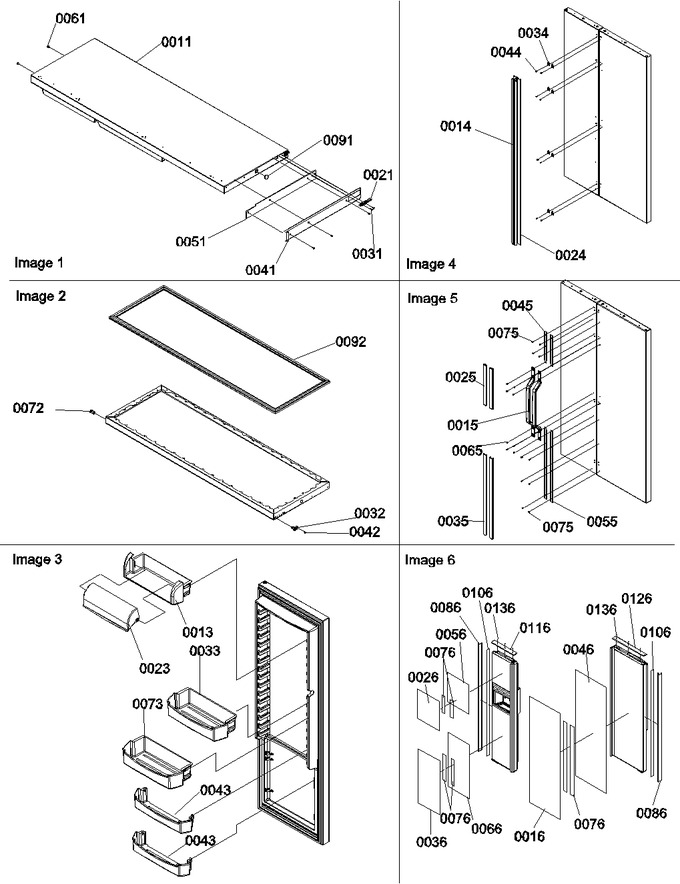

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12309701E		Assy, Ref Door (black)		Appelez-nous	-
13	12308603		Frame, Dairy				$ 26.46
15	12312003		Handle, E-door (black)		Appelez-nous	-
21	C8972407		Stop, Door (blk)		Appelez-nous	-
23	12308701		Door, Dairy		Appelez-nous	-
25	12312305		Trim, E Sxs Top		Appelez-nous	-
31	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
32	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.55
33	12309509		Bucket, Ref Door		Appelez-nous	-
35	12312306		Trim, E Sxs Btm		Appelez-nous	-
42	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
43	12311206		Shelf, Ref Door				$ 30.51
45	12273801		Retainer,top Trim		Appelez-nous	-
55	12273802		Retainer,btm Trim		Appelez-nous	-
61	M0311604		Plug, Button (blk)		Appelez-nous	-
65	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 10.58
72	10961002		Bushing, Door (blk)		Appelez-nous	-
73	12309511		Bucket, Ref Door				$ 39.49
75	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
91	A3080001		Plug, Button (blk)		Appelez-nous	-
92	R9800048		Assy,ref Dr Gasket(black)		Appelez-nous	-
NI	12310201		Retainer, Ref Bucket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
