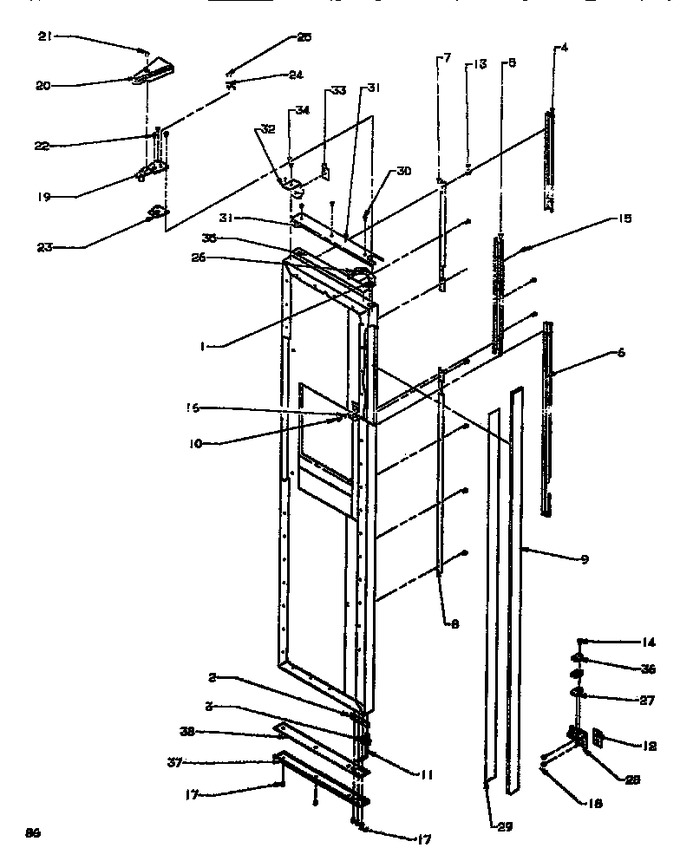

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP67004977 | Bushing, Top (Replaces: C8964401) |
|
$ 8.20 | |||||
| 2 | C8972403 | Stop, Door (blk) |
|
- | |||||
| 3 | R0181181 | Kit,dr Closure (Replaces: D7751401) |
|
Immediately | $ 7.55 | ||||
| 9 | 10494513 | Trim, Vertical |
|
- | |||||
| 10 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 11 | WPB5705307 | Tubing Plastic (Replaces: B5705308) |
|
$ 13.05 | |||||
| 12 | 10399501 | Kit,btm Hinge Shim |
|
- | |||||
| 12 | 10399502 | Kit,btm Hinge Shim |
|
- | |||||
| 14 | WP489128 | Screw (Replaces: M0220417) |
|
$ 11.40 | |||||
| 17 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 18 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 7.55 | |||||
| 19 | 10495803 | Hinge, Top (e-ct) |
|
- | |||||
| 20 | 10504010 | Cover, Hinge (gray) |
|
- | |||||
| 21 | M0202325 | Screw |
|
- | |||||
| 22 | R9800670 | Kit, Screw (Replaces: M0226331) |
|
$ 10.58 | |||||
| 24 | M0272803 | Lock Washer |
|
- | |||||
| 25 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 26 | 10487602 | Harness-fz Door |
|
- | |||||
| 27 | R0181181 | Kit,dr Closure (Replaces: D7748301) |
|
Immediately | $ 7.55 | ||||
| 28 | 10496104 | Kit,hinge Lh Btm(b) |
|
- | |||||
| 29 | M0275178 | Tape Double Back (roll)k |
|
- | |||||
| 31 | 10765202 | Trim, Frz Dr (top) |
|
- | |||||
| 32 | 10494801 | Cap, Handle |
|
- | |||||
| 33 | D7853501 | Nameplate End Cap |
|
- | |||||
| 34 | M0213521 | Screw |
|
- | |||||
| 34 | M0213517 | Screw K |
|
- | |||||
| 35 | M0275177 | Double Back Tape 1 1/4`` W. |
|
- | |||||
| 36 | B8387701 | Shim, Door Closure |
|
- | |||||
| 36 | B8387702 | Shim, Door Closure |
|
- | |||||
| 37 | 10494101 | Trim, Frz Dr Bottom |
|
- | |||||
| 38 | 10494604 | Support, Fz Trim |
|
- |
