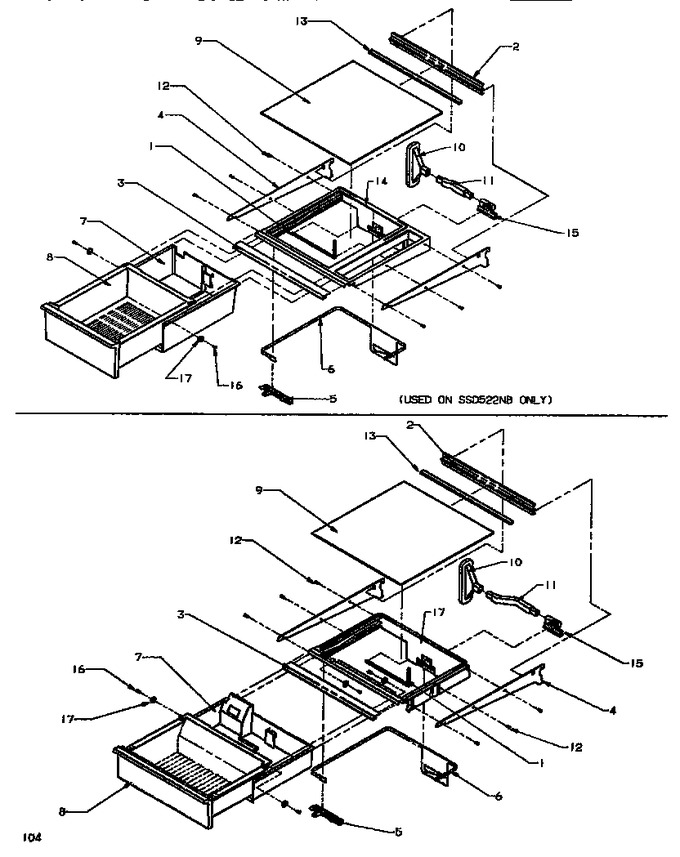

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A3030353 | Gasket |
|
- | |||||
| 2 | C8990405 | Trim, Rear |
|
- | |||||
| 3 | 10049956 | Trim, Shelf Frt |
|
- | |||||
| 4 | D7862986 | Rail, Blank Side |
|
- | |||||
| 4 | D7862987 | Rail, Blank Side |
|
- | |||||
| 5 | D7859402 | Slide-mk Control |
|
- | |||||
| 6 | 10518401 | Band, Mk |
|
- | |||||
| 7 | 10469905 | Sleeve, Mk |
|
- | |||||
| 8 | 10469814 | Pan, Mt Kpr |
|
- | |||||
| 9 | 10370026 | Glass, Mtkpr Shelf |
|
- | |||||
| 10 | D7873602 | Grommet, Mk |
|
- | |||||
| 11 | 10518201 | Duct, Mk Air |
|
- | |||||
| 12 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 13 | 10043102 | Ext. Rear Glass |
|
- | |||||
| 14 | 10469701 | Frame, Mk |
|
- | |||||
| 15 | D7869101 | Ext. Air Duct |
|
- | |||||
| 16 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 10.79 | |||||
| 17 | 10481001 | Roller, Pan |
|
$ 10.99 |
