Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7788908 Ass`y, Mach Comp. Back Appelez-nous -
2 D7790601 Drain Pan Appelez-nous -
3 M0219704 Screw Appelez-nous -
4 B5759604 Gasket Appelez-nous -
5 M0272803 Lock Washer Appelez-nous -
6 C8913701 Support, Mc Appelez-nous -
7 M0102325 Clamp Appelez-nous -
8 M0221548 Screw, Shoulder Appelez-nous -
9 D7790501 Support Drain Pan Appelez-nous -
10 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

11 WP22002933 Screw, Sm   (Replaces: M0211357) Special Order $ 8.06

12 4007A Drier   (Replaces: B2150502) In-Stock Immediately $ 15.05

13 B5742601 Blade, Fan Appelez-nous -
14 WPW10169124 Grommet, Compressor   (Replaces: 10514101) Special Order $ 7.55

15 A3041801 Strap K Appelez-nous -
16 M0218118 Screw Appelez-nous -
17 D7844202 Bracket, Timer Appelez-nous -
18 C3689111 Overload Appelez-nous -
20 B0551801 Terminal Cover Appelez-nous -
21 C8982101 Bracket, Cond Motor Appelez-nous -
22 D7846901 Motor-condenser Appelez-nous -
23 D7351107 Compressor Appelez-nous -
26 10509401 Harness, M.c. Appelez-nous -
27 D7844112 Shroud-condenser Fan Appelez-nous -
28 WP12990527 Screw   (Replaces: M0219916) In-Stock Immediately $ 8.76

29 M0221332 Screw, Shoulder Appelez-nous -
30 M0223803 Screw Appelez-nous -
32 M0253916 Screw Appelez-nous -
33 M0500107 Grommet K Appelez-nous -
34 M0585402 Tie Wire Appelez-nous -
34 DC61-40081A Tie, Wire   (Replaces: M0585401) Special Order $ 0.94

37 B8346301 Spacer Cond. Appelez-nous -
38 D7748614 Basepan, M. C. Appelez-nous -
39 D7824504 Condenser Appelez-nous -
40 M0293703 Speednut Appelez-nous -
41 M0217224 Screw Appelez-nous -
47 10129302 Kit, Defrost Timer Appelez-nous -
48 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

49 C3689205 Relay Appelez-nous -
51 M0102301 Clamp Appelez-nous -
NI C8916701 Spring K Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

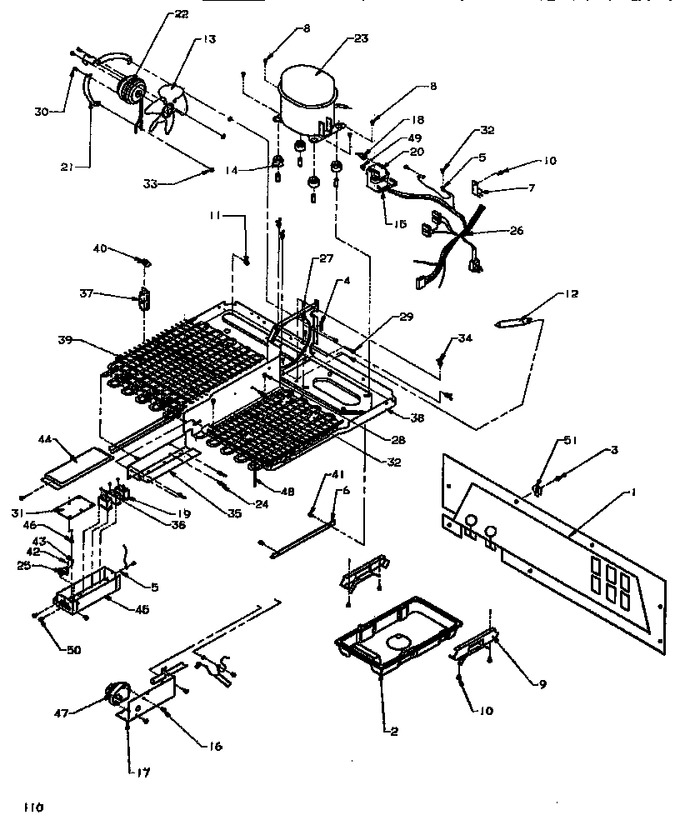

Diagram for SXD520NW (BOM: P1181101W W)
