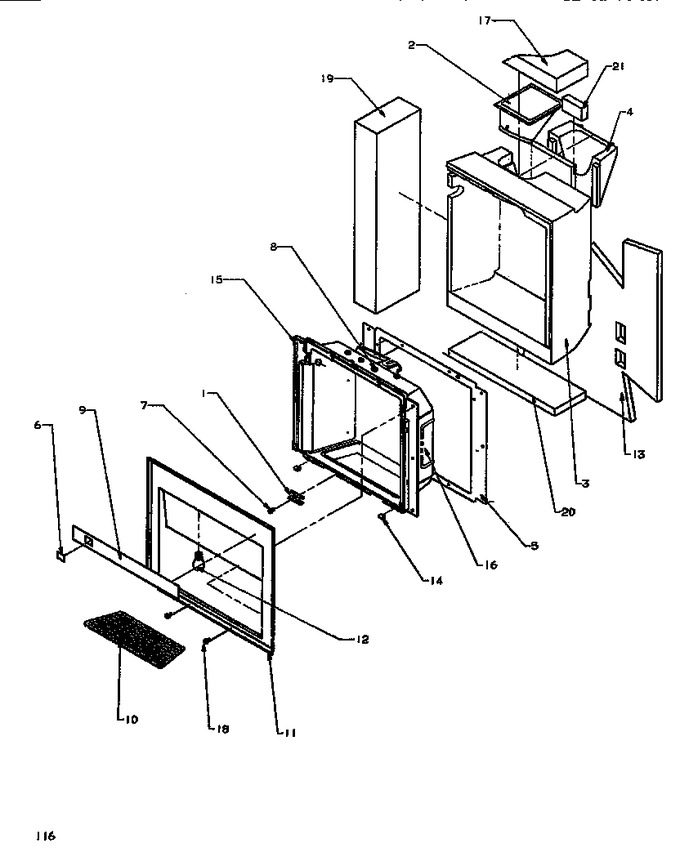

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8992901 | Clip |
|
- | |||||
| 2 | 10504101 | Chute, Ice |
|
- | |||||
| 3 | 10506501 | Insul., I/w Cavity |
|
- | |||||
| 4 | 10504601 | Insul., Ice Chute |
|
- | |||||
| 5 | D7791002 | Gasket Cavity |
|
- | |||||
| 7 | M0216517 | Screw |
|
- | |||||
| 8 | M0274701 | Retainer, Ring |
|
- | |||||
| 9 | D7842250 | Membrane, Facade |
|
- | |||||
| 10 | D7750606 | Grille Sump Blk |
|
- | |||||
| 11 | D7877532 | Facade, Dispenser |
|
- | |||||
| 12 | M0360401 | Light Bulb (220/250) 6 Watt |
|
- | |||||
| 13 | 10220201 | Insulation Batt |
|
- | |||||
| 14 | B8390301 | Clip, Facade |
|
- | |||||
| 15 | 10198005 | Cavity Dispenser |
|
- | |||||
| 16 | 10295902 | Heater, Cavity |
|
- | |||||
| 17 | B5629061 | Insul., Batt |
|
- | |||||
| 18 | M0217701 | Screw |
|
- | |||||
| 19 | 10270907 | Insul, Batt |
|
- | |||||
| 20 | B5629062 | Insul., Batt |
|
- | |||||
| 21 | B5629058 | Insulation Batt |
|
- |
