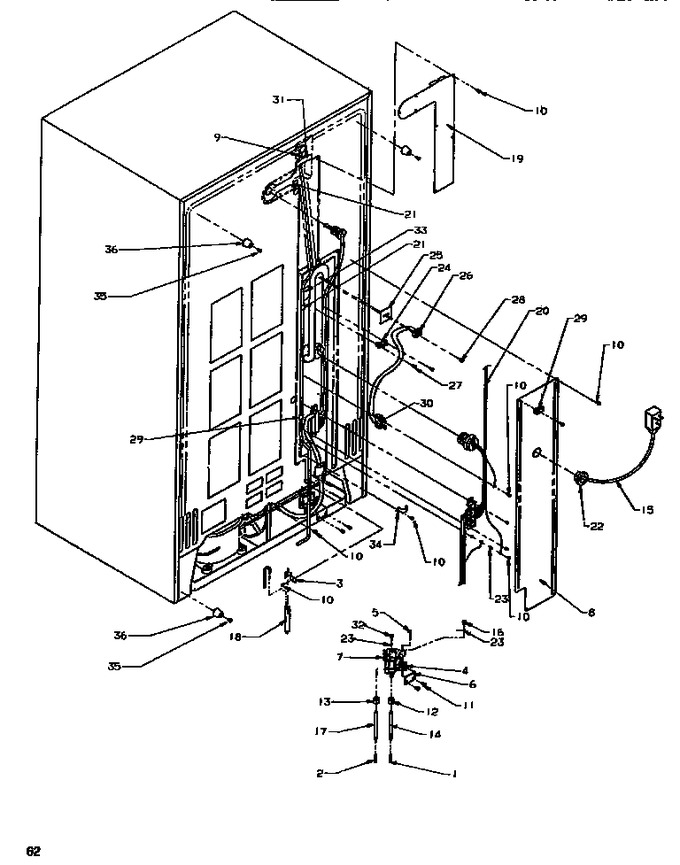

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A1055101 | Spring, Antikink |
|
- | |||||
| 2 | A1055105 | Spring, Anti Kink |
|
- | |||||
| 3 | 10547001 | Clip, Drier |
|
- | |||||
| 4 | 10244902 | Coupling |
|
- | |||||
| 5 | 10798001 | Clip, Water Valve |
|
- | |||||
| 6 | 10496301 | Brkt, Water Val. |
|
- | |||||
| 7 | D7827204 | Valve, Water (220/240 Vac, 50 |
|
$ 113.44 | |||||
| 8 | 10178404 | O.c. Back Cover |
|
- | |||||
| 9 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.60 | |||||
| 10 | M0227217 | Screw, Sm |
|
- | |||||
| 11 | 681390 | Screw (Replaces: M0251015) |
|
$ 13.71 | |||||
| 12 | WP627018 | Nut, Sleeve (Replaces: M0753001) |
|
$ 11.51 | |||||
| 13 | M0753003 | Nut, Sleeve |
|
- | |||||
| 14 | WPB5705307 | Tube, Plastic , 68`` (Replaces: B5705321) |
|
$ 13.05 | |||||
| 15 | B5669014 | Cord, Power |
|
- | |||||
| 16 | WP489399 | Screw, Se (Replaces: M0232929) |
|
$ 7.30 | |||||
| 17 | 10958202 | Kit, Water Tank |
|
- | |||||
| 18 | WPB2150504 | Drier (Replaces: B2150504) |
|
$ 136.98 | |||||
| 19 | 10178504 | Cover - Wire |
|
- | |||||
| 20 | 10786101 | Harness, Cabinet |
|
- | |||||
| 21 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 8.17 | |||||
| 22 | A4554813 | Snap Bushing |
|
- | |||||
| 23 | M0272803 | Lock Washer |
|
- | |||||
| 24 | Y10203701 | Strain Relief |
|
- | |||||
| 25 | 10377602 | Insulation, Term Block |
|
- | |||||
| 26 | C8969202 | Terminal Block |
|
- | |||||
| 27 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 8.55 | ||||
| 28 | M0229005 | Screw K |
|
- | |||||
| 29 | M0108001 | Clamp, Tube |
|
- | |||||
| 30 | 10786301 | Jumper, Pwr Cord |
|
- | |||||
| 31 | A3189336 | Gasket, Foam |
|
- | |||||
| 32 | M0233803 | Screw, Tf |
|
- | |||||
| 33 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 34 | B5794201 | Clamp |
|
- | |||||
| NI | WPA3223101 | Insert, Plastic Tube (Replaces: A3223101) |
|
Immediately | $ 8.21 |
