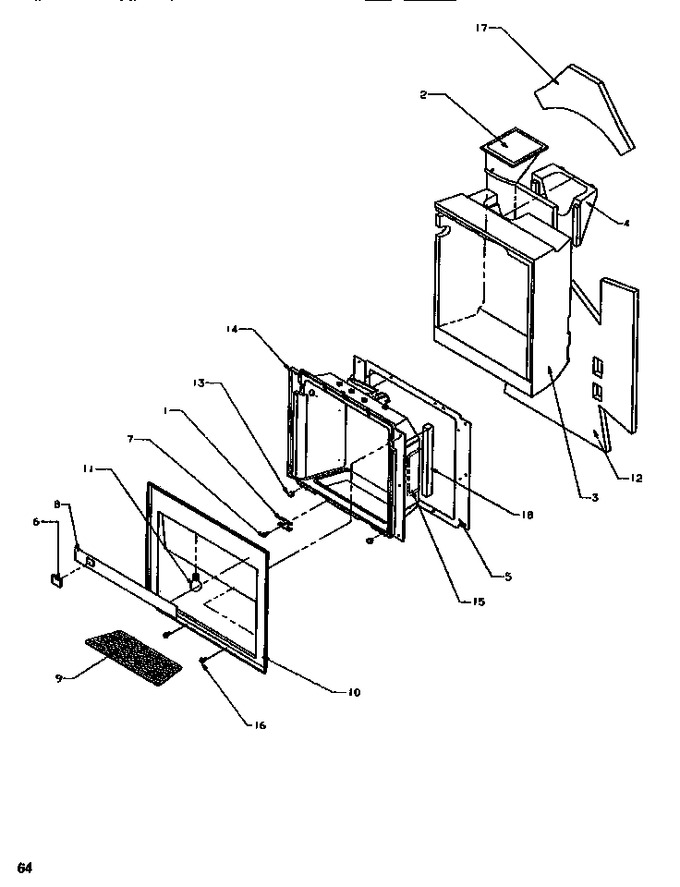

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8992901 | Clip |
|
- | |||||
| 2 | 10504101 | Chute, Ice |
|
- | |||||
| 3 | 10895401 | Insul., I/w Cavity |
|
- | |||||
| 4 | 10895501 | Insul, Ice Chute |
|
- | |||||
| 5 | D7791003 | Gasket Cavity |
|
- | |||||
| 6 | 10865903 | Cap-switch Wh |
|
- | |||||
| 6 | 10865905 | Cap-switch Al |
|
- | |||||
| 7 | M0216517 | Screw |
|
- | |||||
| 8 | 10984608 | Insert, Facade (almond) |
|
- | |||||
| 8 | 10984607 | Insert, W Facade |
|
- | |||||
| 9 | D7750603 | Grille, Sump (white) |
|
- | |||||
| 10 | 10986106 | Facade, Disp(almond) |
|
- | |||||
| 10 | 10986105 | Facade-white |
|
- | |||||
| 11 | M0360401 | Light Bulb (220/250) 6 Watt |
|
- | |||||
| 12 | 10941501 | Insul, Batt |
|
- | |||||
| 13 | B8390301 | Clip, Facade |
|
- | |||||
| 14 | 10876001 | Cavity,dispenser(white) |
|
- | |||||
| 14 | 10876002 | Cavity, Disp (almond) |
|
- | |||||
| 15 | 10295902 | Heater, Cavity |
|
- | |||||
| 16 | M0219614 | Screw K |
|
- | |||||
| 16 | M0219640 | Screw |
|
- | |||||
| 17 | Y10949901 | Gasket-ice Chute |
|
- | |||||
| 18 | A3030341 | Gasket |
|
- |
