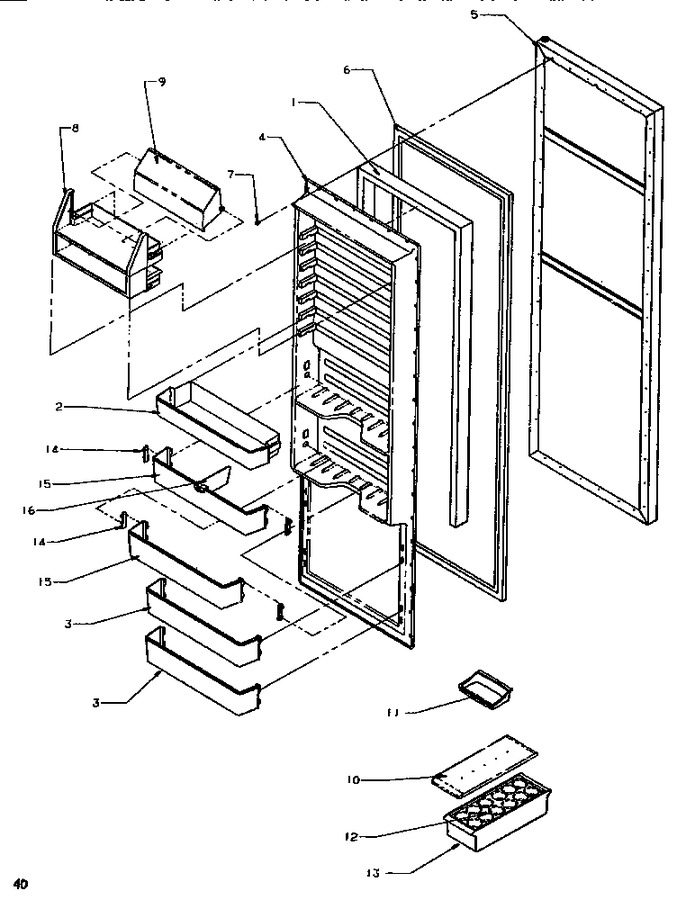

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B0523563		Insulation Ft. K		Appelez-nous	-
2	10520208		Bucket, Ref Door		Appelez-nous	-
3	10521808		Shelf-ref Door		Appelez-nous	-
4	10866101		Liner-ref Dr		Appelez-nous	-
5	10881304W		Ref Dr Fm Assy		Appelez-nous	-
5	10881304L		Ass`y, Ref Door(almond) Btm		Appelez-nous	-
6	10359701		Gasket, Door (w Ref)		Appelez-nous	-
7	M0219730		Screw				$ 7.65
8	10525101		Shelf, Dairy		Appelez-nous	-
9	10527307		Door, Dairy		Appelez-nous	-
10	10436404		Lid, Utility				$ 60.85
11	10310901		Tray, Butter		Appelez-nous	-
12	10436504		Tray, Egg		Appelez-nous	-
13	10423128		Bin-utility		Appelez-nous	-
14	10202001		Clip, Retainer		Appelez-nous	-
15	10520411		Shelf, Chiller		Appelez-nous	-
16	10169004		Snugger, Shelf		Appelez-nous	-
