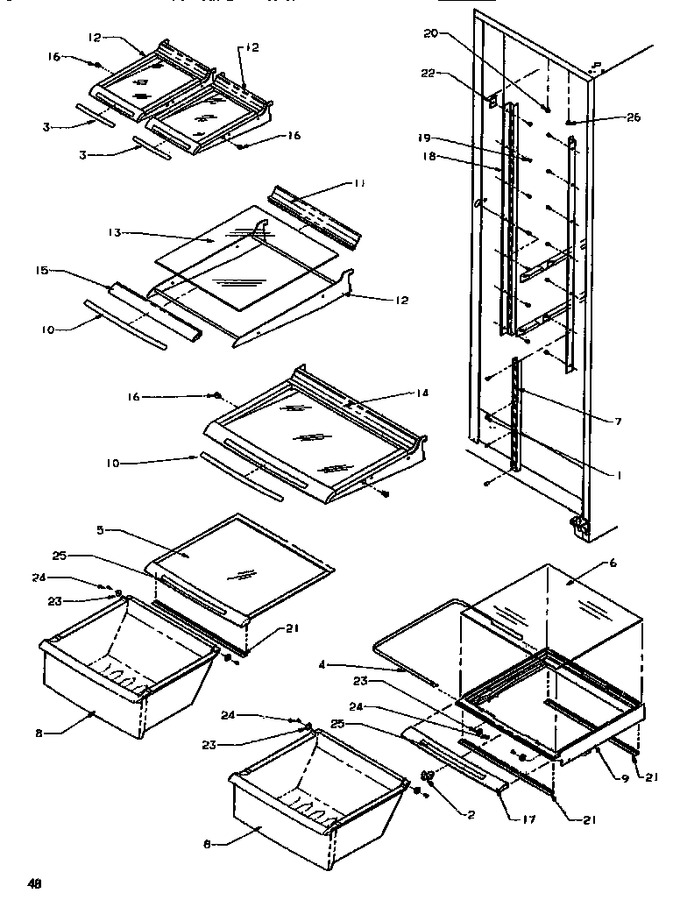

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	10852501		Slide, Crisper/deli		Appelez-nous	-
4	10882702		Band-crisper		Appelez-nous	-
4	10882701		Band, Crisper		Appelez-nous	-
6	Y10370065		Glass-shelf		Appelez-nous	-
6	10783101		Shelf- Top Crisper		Appelez-nous	-
8	10783301		Pan, Crisper		Appelez-nous	-
8	10783201		Pan,crisper		Appelez-nous	-
9	10783001		Frame-crisper		Appelez-nous	-
9	10782901		Frame,crisper		Appelez-nous	-
10	10954013		Insert, Shelf		Appelez-nous	-
14	10809501		Shelf Full Glide		Appelez-nous	-
16	10875101		Stop, Shelf		Appelez-nous	-
17	10872201		Trim, Crisper Frt		Appelez-nous	-
18	D7789809		Ladder, Cantilever		Appelez-nous	-
18	D7789808		Ladder, Cantilever		Appelez-nous	-
19	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
20	M0580007		Grommet, Screw		Appelez-nous	-
21	10968801		Seal-crisp Front		Appelez-nous	-
22	C8992301		Bracket		Appelez-nous	-
23	10481001		Roller, Pan				$ 10.99
24	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
25	10954022		Insert, Shelf		Appelez-nous	-
26	M0581001		Grommet, Screw		Appelez-nous	-
NI	10882801		Assy, Crisper Frame		Appelez-nous	-
NI	10882802		Ass`y, Crisp Frame		Appelez-nous	-
NI	10883302		Ass`y, Full Glide Shelf		Appelez-nous	-
