Diagram for 01 - Back Unit
01 - Back Unit

Diagram for 02 - Drain And Rollers
02 - Drain And Rollers

Diagram for 03 - Factory Installed Ice Maker
03 - Factory Installed Ice Maker

Diagram for 04 - Fz Door
04 - Fz Door

Diagram for 05 - Fz Door Hinge And Trim Parts
05 - Fz Door Hinge And Trim Parts

Diagram for 06 - Fz Evap And Air Handling
06 - Fz Evap And Air Handling

Diagram for 07 - Fz Shelving And Ref Light
07 - Fz Shelving And Ref Light

Diagram for 08 - Machine Compartment
08 - Machine Compartment

Diagram for 09 - Ref
09 - Ref

Diagram for 10 - Ref Door
10 - Ref Door

Diagram for 11 - Ref Door Hinge And Trim Parts
11 - Ref Door Hinge And Trim Parts

Diagram for 12 - Ref Shelving And Drawers
12 - Ref Shelving And Drawers

Diagram for 13 - Ref Shelving And Drawers
13 - Ref Shelving And Drawers


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10178402 Cover, O.c.back Appelez-nous -
2 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

3 B8310505 Cord, Power Appelez-nous -
4 10178504 Cover - Wire Appelez-nous -
5 10554401 Harness, Cabinet Appelez-nous -
6 10178701 Grommet Wire Appelez-nous -
7 10178801 Grommet Wire Appelez-nous -
8 WPM0104106 Clip,cord   (Replaces: M0104101) Special Order $ 8.17

9 A3189336 Gasket, Foam Appelez-nous -
10 B5794201 Clamp Appelez-nous -
11 M0232317 Screw Appelez-nous -
12 4007A Drier   (Replaces: B2150503) In-Stock Immediately $ 15.05

13 10547001 Clip, Drier Appelez-nous -
14 M0103903 Clamp, Speed Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

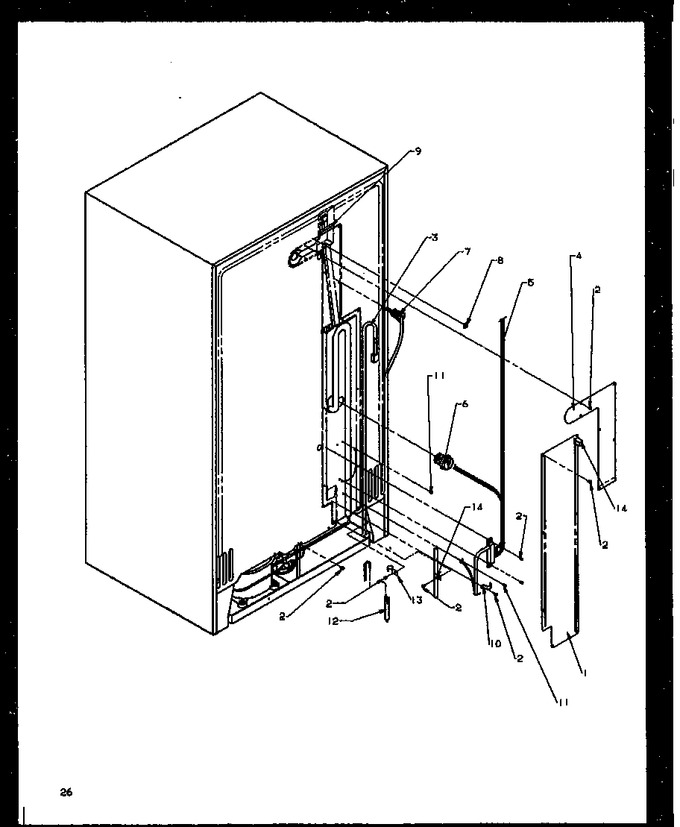

Diagram for SXI20NW (BOM: P1162903W W)
