Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 C8982801 Retainer, Door Liner Appelez-nous -
2 10547301E Assy. Frz Dr Cfc11 Appelez-nous -
2 10547301L Assy Frz Dr Cfc11 Appelez-nous -
2 10547301W Assy Frz Dr Fm Appelez-nous -
3 10525503 Shelf, Freezer Door Appelez-nous -
3 10525504 Shelf, Freezer Door Appelez-nous -
4 10359704 Gasket Door Frz Appelez-nous -
4 10359702 Gasket (w Frz Dr) Appelez-nous -
5 10534901 Liner, Frz. Door Appelez-nous -
6 D7828601 Retainer, Door Liner Appelez-nous -
7 M0219730 Screw Special Order $ 7.65

8 10237602 Retainer, Package Appelez-nous -
9 B0523563 Insulation Ft. K Appelez-nous -
10 10063102 Clip, Door Dike Appelez-nous -
11 10063206 Rem Dike I & W Lower Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

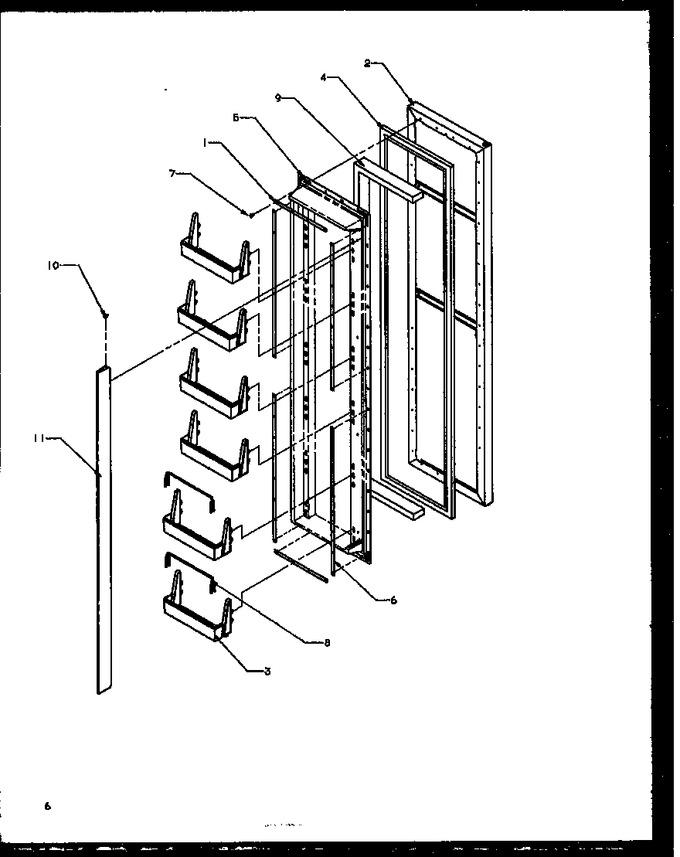

Diagram for SXI20NW (BOM: P1162903W W)
