Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10393802 Bushing, Door (wht) Appelez-nous -
1 10393803 Bushing, Door (blk) Appelez-nous -
2 C8972403 Stop, Door (blk) Appelez-nous -
2 C8972402 Stop, Door Appelez-nous -
3 R0181181 Kit,dr Closure   (Replaces: D7751402) In-Stock Immediately $ 7.55

3 R0181181 Kit,dr Closure   (Replaces: D7751404) In-Stock Immediately $ 7.55

4 D7852008 Trim Appelez-nous -
4 D7852010 Trim Appelez-nous -
4 D7852007 Trim Upper Ref Door K Appelez-nous -
5 D7853802 Trim Center Refr K Appelez-nous -
5 D7853803 Trim Center Ref Appelez-nous -
5 D7853805 Trim Center Ref Dr Appelez-nous -
6 D7792802 Lower Trim Ref Door K Appelez-nous -
6 D7792805 Trim Lwr Ref Door Appelez-nous -
6 D7792803 Trim Lwr Ref Door Appelez-nous -
7 D7793202 Ref. Trim, Retainer Appelez-nous -
8 C8974102 Trim, Door Appelez-nous -
9 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

10 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43

11 R9800670 Kit, Screw   (Replaces: M0211030) Special Order $ 10.58

12 D7863001 Inner Pad K Appelez-nous -
12 D7863002 Pad, Handle Inner (wht) Appelez-nous -
12 D7863004 Pad, Handle Inner (alm) Appelez-nous -
13 D7863102 Pad, Handle Outer (wht) Appelez-nous -
13 D7863101 Outer Pad K Appelez-nous -
13 D7863104 Pad, Handle Outer (alm) Appelez-nous -
14 C8984307 Thinplate Appelez-nous -
14 C8984306 Thinplate K Appelez-nous -
15 D7826603 Handle Appelez-nous -
16 10495803 Hinge, Top (e-ct) Appelez-nous -
17 R9800670 Kit, Screw   (Replaces: M0226331) Special Order $ 10.58

18 B8389001 Shim, Top Hinge Appelez-nous -
19 10504308 Cover, Blk Hinge Appelez-nous -
19 10504307 Kit, Hinge Cover (sxs) Appelez-nous -
20 WP489128 Screw   (Replaces: M0220417) Special Order $ 11.40

21 R0181181 Kit,dr Closure   (Replaces: D7748302) In-Stock Immediately $ 7.55

22 10496105 Kit,hinge Rh Btm(b) Appelez-nous -
23 10399502 Kit,btm Hinge Shim Appelez-nous -
23 10399501 Kit,btm Hinge Shim Appelez-nous -
24 WP67006715 Screw   (Replaces: M0233847) Special Order $ 7.55

25 M0215116 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

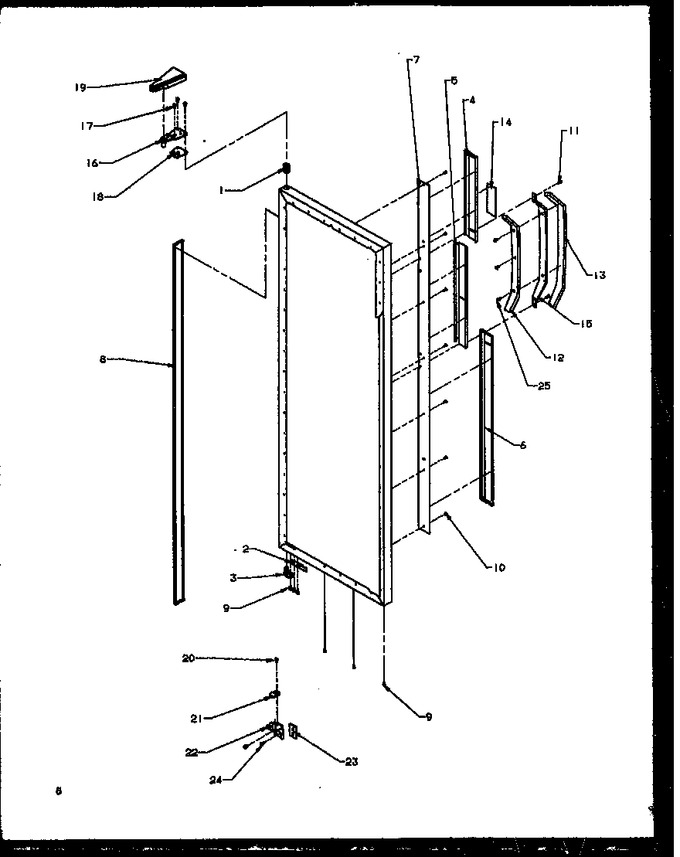

Diagram for SXI20NW (BOM: P1162903W W)
