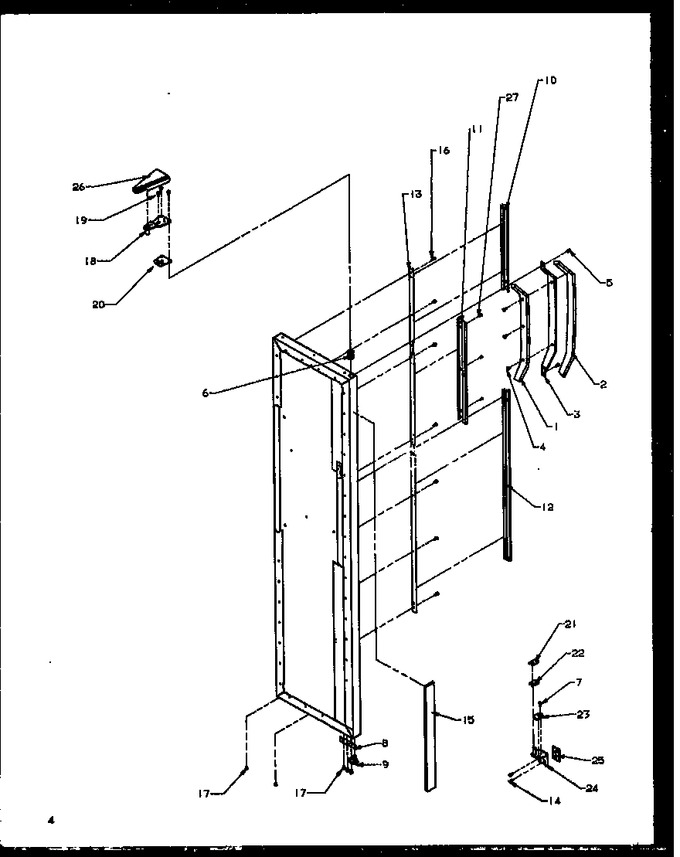

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7863002		Pad, Handle Inner (wht)		Appelez-nous	-
1	D7863004		Pad, Handle Inner (alm)		Appelez-nous	-
1	D7863001		Inner Pad K		Appelez-nous	-
2	D7863104		Pad, Handle Outer (alm)		Appelez-nous	-
2	D7863101		Outer Pad K		Appelez-nous	-
2	D7863102		Pad, Handle Outer (wht)		Appelez-nous	-
3	D7826603		Handle		Appelez-nous	-
4	M0215116		Screw		Appelez-nous	-
5	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
6	10393802		Bushing, Door (wht)		Appelez-nous	-
6	10393803		Bushing, Door (blk)		Appelez-nous	-
7	WP489128		Screw   (Replaces: M0220417)				$ 11.40
8	C8972402		Stop, Door		Appelez-nous	-
8	C8972403		Stop, Door (blk)		Appelez-nous	-
9	R0181181		Kit,dr Closure   (Replaces: D7751404)			Immediately	$ 7.55
9	R0181181		Kit,dr Closure   (Replaces: D7751402)			Immediately	$ 7.55
10	D7852102		Trim Upper Frz Door (b)		Appelez-nous	-
10	D7852103		Upper Trim Frz Dr (w)		Appelez-nous	-
10	D7852105		Upper Trim Frz Dr (l)		Appelez-nous	-
11	D7853903		Trim Center Frz		Appelez-nous	-
11	D7853902		Trim Center Frz K		Appelez-nous	-
11	D7853905		Trim Center Frz		Appelez-nous	-
12	D7792705		Trim, Lwr Frz Door (l)		Appelez-nous	-
12	D7792702		Lower Trim Frz Door (b)		Appelez-nous	-
12	D7792703		Trim, Lwr Frz Door (w)		Appelez-nous	-
13	D7792902		Frz Trim, Retainer		Appelez-nous	-
14	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
15	C8974102		Trim, Door		Appelez-nous	-
16	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
17	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
18	10495803		Hinge, Top (e-ct)		Appelez-nous	-
19	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
20	B8389001		Shim, Top Hinge		Appelez-nous	-
21	B8387703		Shim, Door Closure		Appelez-nous	-
22	WP67005716		Shim, Dr Closure (blk)   (Replaces: B8387704)				$ 7.83
23	R0181181		Kit,dr Closure   (Replaces: D7748302)			Immediately	$ 7.55
24	10496104		Kit,hinge Lh Btm(b)		Appelez-nous	-
25	10399502		Kit,btm Hinge Shim		Appelez-nous	-
25	10399501		Kit,btm Hinge Shim		Appelez-nous	-
26	10504308		Cover, Blk Hinge		Appelez-nous	-
26	10504307		Kit, Hinge Cover (sxs)		Appelez-nous	-
27	M0216517		Screw		Appelez-nous	-
