SELECT A DIAGRAM

01 - Motor And Drive Parts


02 - Frame Parts


03 - Powerscrew And Ram Parts


04 - Container Parts


05 - Panel And Control Parts


06 - Accessory Parts

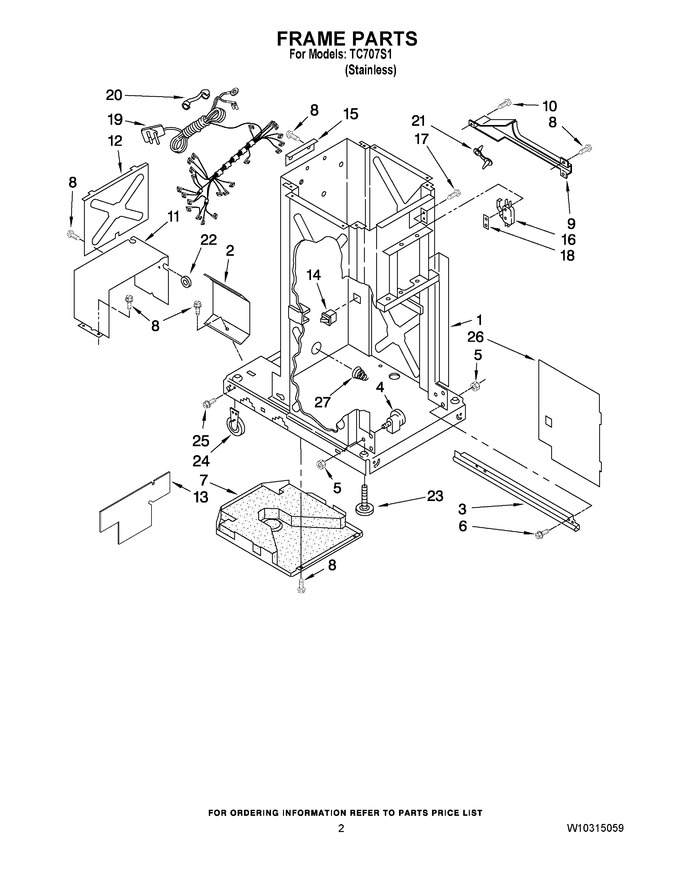

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Frame (not A Serviceable Part)		Appelez-nous	-
2	9870867		Shield, Slide Track		Appelez-nous	-
3	W11722978		Frame, Slide (r.h.)   (Replaces: 9870976)				$ 141.33
3	WP9870975		Frame, Slide (l.h.)   (Replaces: 9870975)				$ 112.70
4	882688		Bearing, Roller   (Replaces: 4153788)				$ 21.19
5	WP776356		Locknut   (Replaces: 776356)				$ 8.53
6	WP486754		Screw   (Replaces: 777458)				$ 8.01
7	WP780437		Pan, Bottom   (Replaces: 9870167)				$ 316.61
8	WP489478		Screw,   (Replaces: W10001260)				$ 8.18
9	4149659		Shield, Harness		Appelez-nous	-
10	WPW10139210		Screw   (Replaces: 4152204)				$ 8.03
11	780434		Cover, Motor		Appelez-nous	-
12	608009		Plate, Motor Cover				$ 39.79
13	W11688705		Insulation   (Replaces: 9872154)		Appelez-nous	-
14	W11243179		Switch, Drawer Safety   (Replaces: 4149377)				$ 74.74
15	775668		Angle, Top Support		Appelez-nous	-
16	WP777811		Switch, Top Limit & Directional   (Replaces: 777811)			Immediately	$ 116.62
17	777849		Screw,				$ 7.36
18	777850		Plate, Nut				$ 77.13
19	W10242575		Wiring Harness & Power Cord		Appelez-nous	-
20	W11820597		Bushing, Cord   (Replaces: 776119)		Appelez-nous	-
21	W11705832		Clamp, Wire   (Replaces: 777035)		Appelez-nous	-
22	W11679167		Grommet, Motor Cover   (Replaces: 776118)		Appelez-nous	-
23	WPW10001130		Leveler, Front   (Replaces: 775526)			Immediately	$ 7.80
24	W11023674		Wheel Leveler   (Replaces: 9870585)				$ 54.05
25	WP3351614		Screw,   (Replaces: 780034)			Immediately	$ 7.30
26	WP9870444		Panel, Inner   (Replaces: 9870444)				$ 101.92
27	WP777180		Spring, Container   (Replaces: 777180)				$ 97.93

    View Diagram in Separate Window       Print Part List
