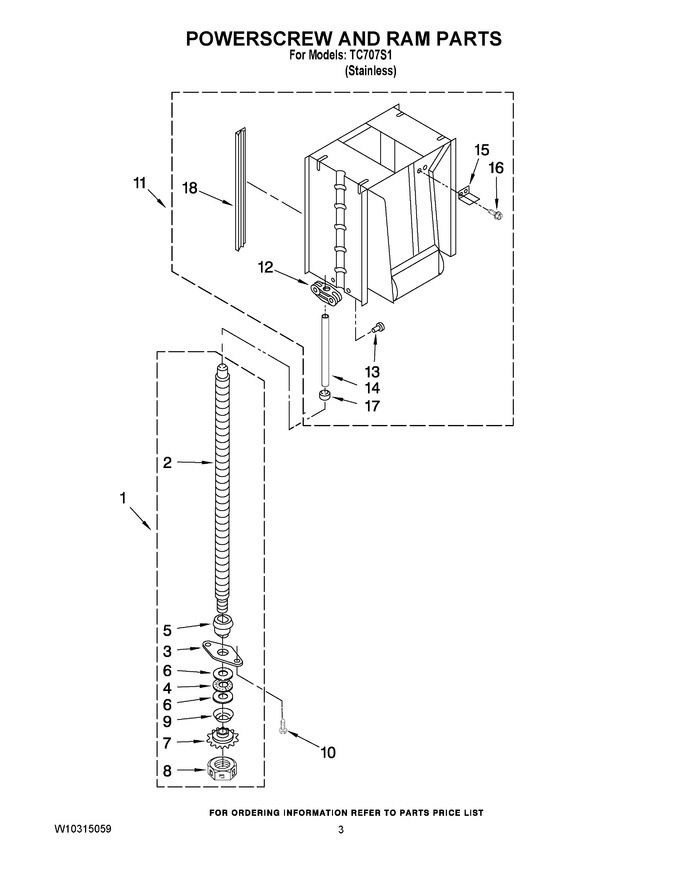

03 - Powerscrew And Ram Parts
04 - Container Parts
05 - Panel And Control Parts
06 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10451272 | Screw, Power Complete Assembly (Replaces: 9870500) |
|
Immediately | $ 264.80 | ||||
| 2 | N/P | Screw, Power (available Only As Complete Assembly) |
|
- | |||||
| 3 | 779121 | Plate, Bearing |
|
$ 29.22 | |||||
| 4 | W10917043 | Bearing, Needle (Replaces: 775482) |
|
$ 14.47 | |||||
| 5 | 776941 | Hub, Power Screw |
|
$ 28.14 | |||||
| 6 | 775481 | Race, Thrust |
|
$ 52.61 | |||||
| 7 | W11679164 | Sprocket Washer (Replaces: 777385) |
|
- | |||||
| 8 | 4154842 | Nut, Power Screw |
|
- | |||||
| 9 | WP777332 | Washer, Cone (Replaces: 777332) |
|
$ 7.30 | |||||
| 10 | WP8204624 | Screw (Replaces: 9871067) |
|
$ 17.48 | |||||
| 11 | W11696573 | Ram Assembly (Replaces: 9871251) |
|
$ 334.76 | |||||
| 12 | WP9870163 | Nut, Power (Replaces: 9870163) |
|
$ 98.72 | |||||
| 13 | 882694 | Stud (Replaces: 9870187) |
|
$ 8.32 | |||||
| 14 | WP9870037 | Stop, Ram (Replaces: 9870037) |
|
$ 8.88 | |||||
| 15 | W11684541 | Bracket, Top Limit Switch (Replaces: 9870498) |
|
- | |||||
| 16 | WP489399 | Screw (Replaces: 489399) |
|
$ 7.30 | |||||
| 17 | W11724671 | Cap, Stop (Replaces: 9870775) |
|
$ 13.76 | |||||
| 18 | W10917246 | Slide, Ram (Replaces: 9870169) |
|
$ 125.52 |
