SELECT A DIAGRAM

01 - Motor And Drive Parts


02 - Frame Parts


03 - Powerscrew And Ram Parts

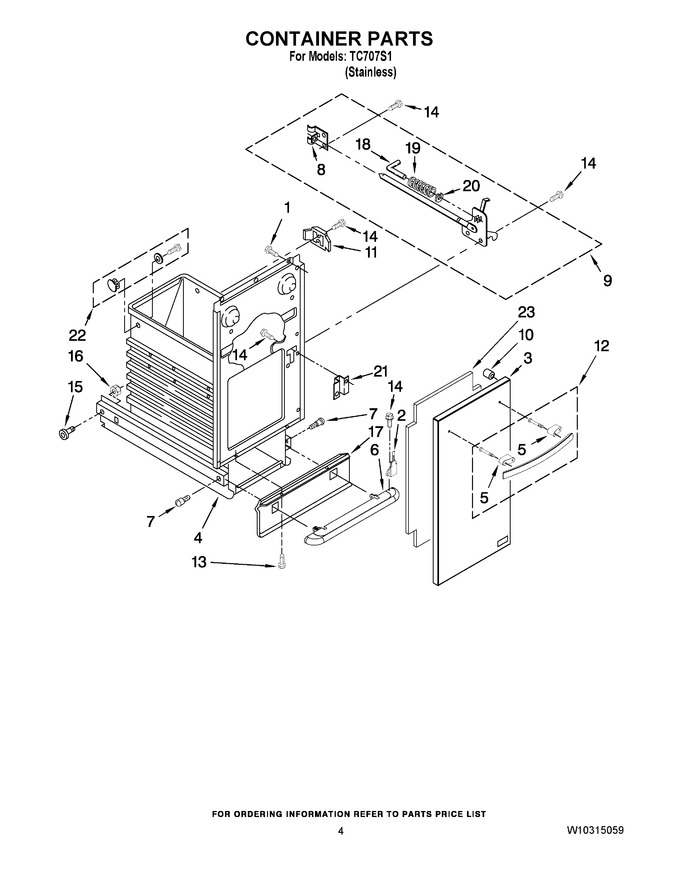

04 - Container Parts


05 - Panel And Control Parts


06 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10139210		Screw   (Replaces: 4152204)				$ 8.03
2	WPW10451270		Actuator Switch   (Replaces: W10242549)				$ 103.67
3	W10190374		Panel, Container Front				$ 381.30
4	WPW10451276		Container Assembly   (Replaces: 9870934)				$ 510.52
5	WPW10190364		Standoff, Handle   (Replaces: W10190364)				$ 173.02
6	W11636605		Pedal, Foot (black)   (Replaces: 9871989B)				$ 65.88
7	WP780263		Screw, Shoulder   (Replaces: 780263)				$ 8.34
8	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 98.10
9	675379		Latch Assembly   (Replaces: 9870066)				$ 182.53
10	WP9871563		Spacer   (Replaces: 9871563)				$ 11.25
11	9871125		Spring, Safety Switch				$ 29.37
12	W10898568		Handle Assembly   (Replaces: W10222164)				$ 188.94
13	WP3196175		Screw   (Replaces: 3196175)			Immediately	$ 7.55
14	WP489478		Screw,   (Replaces: W10001260)				$ 8.18
15	WP9871602		Container, Bearing Roller   (Replaces: 9871602)				$ 13.87
16	WP776356		Locknut   (Replaces: 776356)				$ 8.53
17	W11696574		Plate, Toe Guard (black)   (Replaces: W10242557)				$ 142.26
18	W11705836		Pin   (Replaces: 776654)		Appelez-nous	-
19	775736		Spring, Latch				$ 93.80
20	W11679168		Ring, ''e''   (Replaces: 775735)		Appelez-nous	-
21	775665		Plate, Latch				$ 62.39
22	W11705833		Retainer, Bag (contains 4 Each)   (Replaces: 4147703)		Appelez-nous	-
23	9872153		Insulation, Sound		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
