Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10242567 Panel, Front Frame (black) Special Order $ 350.15

2 W11684543 Cover, Top   (Replaces: 608572) Appelez-nous -
3 W11729437 Bracket, Retainer   (Replaces: 9871993) In-Stock Immediately $ 24.48

4 9871893 Fan Mount Assembly Special Order $ 348.34

5 WP780239 Bracket, Retainer (alternate)   (Replaces: 780239) Special Order $ 28.53

6 WP489478 Screw,   (Replaces: W10001260) Special Order $ 8.18

7 W10242574 Escutcheon, Control (black) Appelez-nous -
8 246131 Screw Appelez-nous -
9 4152703 Strap, Fan Special Order $ 75.32

10 WP9871971 Switch, Rotary Start-run   (Replaces: 9871971) In-Stock Immediately $ 186.64

11 WP9871920 Knob, Rotary Switch   (Replaces: 9871920) Special Order $ 69.55

12 WP777383 Nut, Rotary Switch   (Replaces: 777383) Special Order $ 12.83

13 9871829 Switch, Drawer Special Order $ 93.95

14 WPW10242556 Switch, Pushbutton   (Replaces: W10242556) Special Order $ 158.45

15 9871893 Compartment, Air Freshener   (Replaces: 4151442) Special Order $ 348.34

16 WP3351614 Screw,   (Replaces: 780034) In-Stock Immediately $ 7.30

17 W11032731 Switch Assembly (black)   (Replaces: 9871973) In-Stock Immediately $ 89.22

18 WP9871099 Cover, Air Freshener (black)   (Replaces: 9871099) Special Order $ 71.65

19 WP4151750 Filter, Charcoal   (Replaces: 4151750) Special Order $ 18.60

20 9871893 Fan, Filter   (Replaces: 9871051) Special Order $ 348.34

21 4151897 Clip, Wire Special Order $ 7.40


    View Diagram in Separate Window     Print Icon   Print Part List

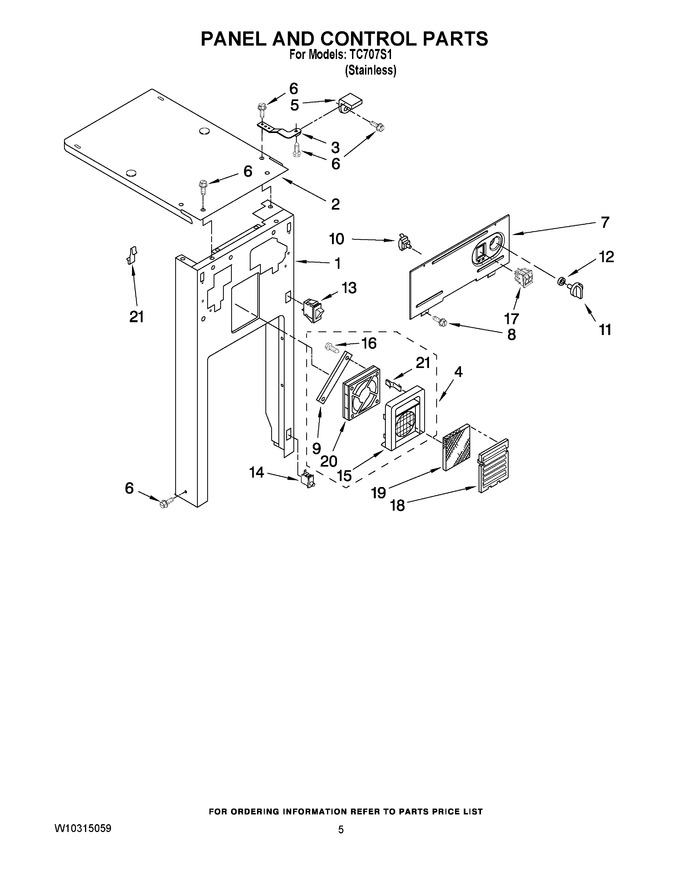

Diagram for TC707S1
