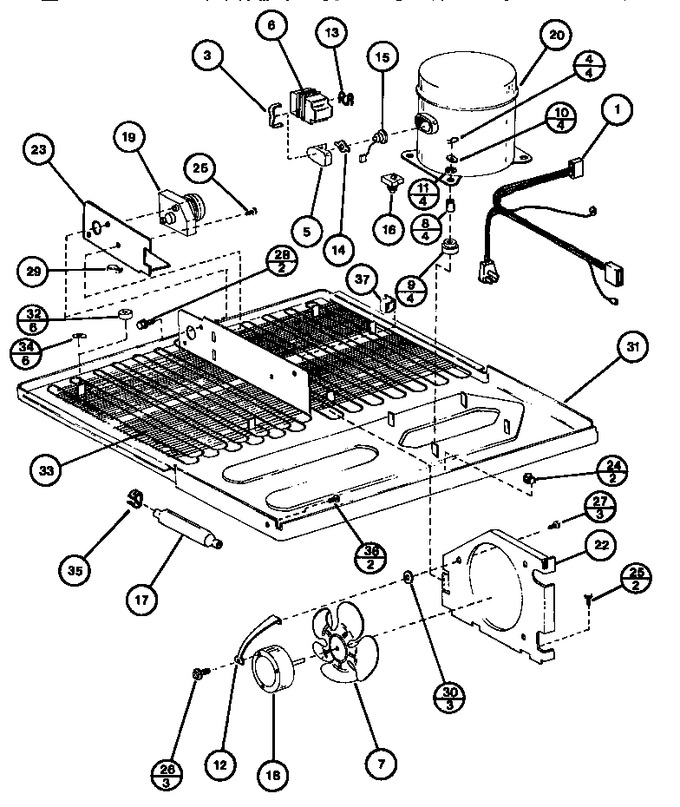

01 - Compressor Compartment


02 - Functional Parts (ref/fzr)


03 - Fz Door


04 - Interior Accessories


05 - Rear Components


06 - Ref Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7559901		Harness Mc		Appelez-nous	-
3	A3041801		Strap K		Appelez-nous	-
4	A3140801		Clip K		Appelez-nous	-
5	B0551801		Terminal Cover		Appelez-nous	-
7	B5742601		Blade, Fan		Appelez-nous	-
8	A3072001		Sleeve K		Appelez-nous	-
9	WPW10169124		Grommet   (Replaces: B8333401)				$ 7.55
10	B8365301		Washer		Appelez-nous	-
12	B0598701		Bracket, Cond Motor		Appelez-nous	-
14	C8916701		Spring K		Appelez-nous	-
15	C3689105		Overload		Appelez-nous	-
16	C3689202		Relay K		Appelez-nous	-
17	WPB2150504		Drier   (Replaces: B5715001)				$ 136.98
18	833697		Motor, Fan   (Replaces: C8891701)			Immediately	$ 109.14
19	D7004107		Timer		Appelez-nous	-
20	30-FF10HBK1		Compressor Ae1410a   (Replaces: D7351001)				$ 833.75
22	D7595302		Condenser Shroud		Appelez-nous	-
23	D7656701		Bracket, Timer		Appelez-nous	-
24	M0110509		Clip		Appelez-nous	-
25	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
26	M0220101		Screw		Appelez-nous	-
27	M0221332		Screw, Shoulder		Appelez-nous	-
28	M0230017		Screw,tc		Appelez-nous	-
29	M0321204		Wire Tie		Appelez-nous	-
30	M0500107		Grommet K		Appelez-nous	-
31	D7595405		Base Pan, Machine Compartment		Appelez-nous	-
32	B8364801		Spacer, Cond		Appelez-nous	-
33	D7654301		Condenser Pntd		Appelez-nous	-
34	M0293701		Nut Speed		Appelez-nous	-
35	M0104002		Clamp-drier		Appelez-nous	-
36	M0233844		Screw, T F		Appelez-nous	-
37	M0113401		Clip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
