SELECT A DIAGRAM

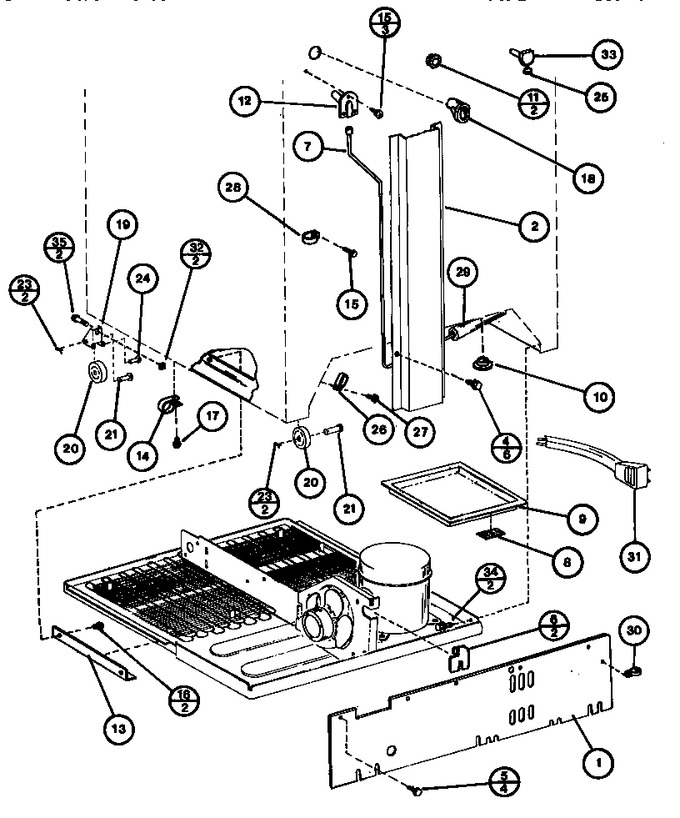

01 - Compressor Compartment


02 - Functional Parts (ref/fzr)


03 - Fz Door


04 - Interior Accessories


05 - Rear Components


06 - Ref Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8890202		Mc Back Assy		Appelez-nous	-
2	D7539407		Cover Heat Exchanger K		Appelez-nous	-
4	M0233716		Screw		Appelez-nous	-
5	M0241118		Screw-sm		Appelez-nous	-
6	B5791401		Retainer Suction Lin		Appelez-nous	-
7	D7462102		Tube, Drain		Appelez-nous	-
8	B5691701		Pad A		Appelez-nous	-
9	D7546601		Net-pan,drain		Appelez-nous	-
10	A3076901		Plug-button				$ 5.70
11	A3080001		Plug, Button (blk)		Appelez-nous	-
12	C3630901		Elbow,drain Tube		Appelez-nous	-
13	C8913701		Support, Mc		Appelez-nous	-
14	M0102305		Clamp, Tube		Appelez-nous	-
15	M0210916		Screw		Appelez-nous	-
16	M0211530		Screw		Appelez-nous	-
17	M0233716		Screw		Appelez-nous	-
18	B5749501		Tunnel-heat Ex		Appelez-nous	-
19	C8742401		Assy, Roller Bracket		Appelez-nous	-
20	M0520102		Roller		Appelez-nous	-
21	M1200201		Pin K		Appelez-nous	-
23	M1200004		Cotter Pin K		Appelez-nous	-
24	M1205302		Rivet				$ 5.85
25	M0310315		Plub Button		Appelez-nous	-
26	M0103901		Clamp		Appelez-nous	-
27	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
28	M0102303		Clamp		Appelez-nous	-
29	A0329806		Insul Tubing 1=12``		Appelez-nous	-
30	M0102301		Clamp		Appelez-nous	-
31	R0157154		Power Cord		Appelez-nous	-
32	M0286708		Nut, Speed				$ 47.85
33	B8318805		Fill Tube Assy		Appelez-nous	-
34	M0233844		Screw, T F		Appelez-nous	-
35	M0204339		Screw Bolt K		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
