SELECT A DIAGRAM

01 - Compressor Compartment


02 - Functional Parts (ref/fzr)


03 - Fz Door


04 - Interior Accessories


05 - Rear Components


06 - Ref Door

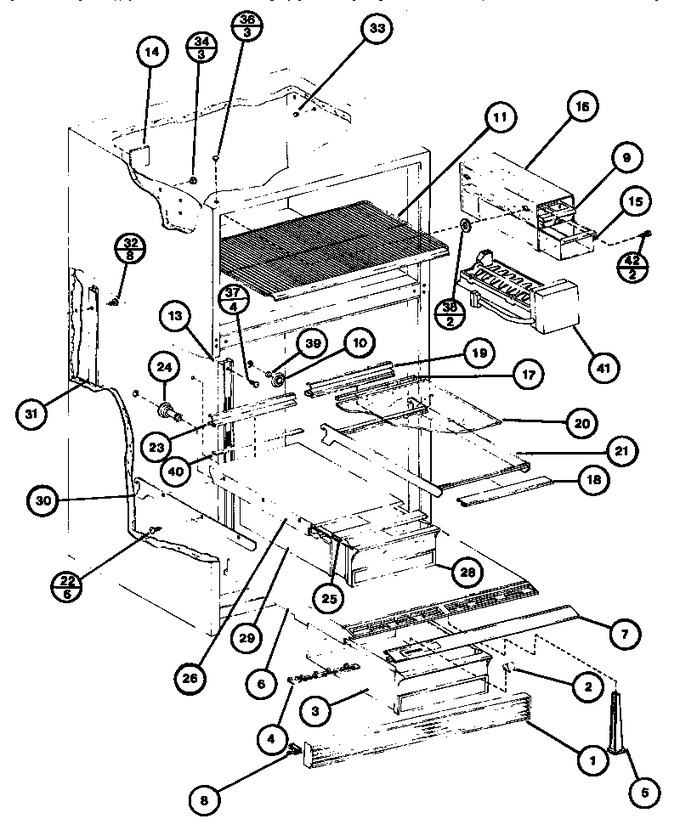

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520502		Grille-toe		Appelez-nous	-
2	C8908301		Knob Humidity A-k		Appelez-nous	-
3	D7581005		Net-pan,crisper		Appelez-nous	-
4	D7587703		Slide Humidity K		Appelez-nous	-
5	D7602202		Crisper Support Post		Appelez-nous	-
6	D7616506		Crisper Top,assy		Appelez-nous	-
7	D7616602		Trim, Crisper Top Front		Appelez-nous	-
8	M0117301		Clip, Grille		Appelez-nous	-
10	C8889401		Plug M K Air Outlet		Appelez-nous	-
11	D7580702		Shelf, Frz		Appelez-nous	-
13	D7599001		Ladder Center		Appelez-nous	-
17	A3030306		Gasket		Appelez-nous	-
18	C8913501		Trim, Shelf A		Appelez-nous	-
19	C8913601		Trim, Shelf		Appelez-nous	-
20	D7421217		Glass, Shelf		Appelez-nous	-
21	D7602303		Frame, Cantilever		Appelez-nous	-
22	M0213129		Screw		Appelez-nous	-
23	C8831808		Trim Shelf		Appelez-nous	-
24	C8889103		Grommet		Appelez-nous	-
25	C8913501		Trim, Shelf A		Appelez-nous	-
26	D7653405		Top, Meat Keeper		Appelez-nous	-
28	D7579305		Meat Pan		Appelez-nous	-
29	D7579501		Sleeve M.k		Appelez-nous	-
30	D7600013		Side Plate, Meat Keeper		Appelez-nous	-
31	D7599101		Ladder Side		Appelez-nous	-
31	D7599103		Ladder Side		Appelez-nous	-
32	M0231117		Screw		Appelez-nous	-
33	WP67001130		Plug   (Replaces: M0310705)			Immediately	$ 8.21
36	M0310721		Plug		Appelez-nous	-
36	WP67001130		Plug   (Replaces: M0310709)			Immediately	$ 8.21
36	M0310720		Plug		Appelez-nous	-
36	M0310718		Plug		Appelez-nous	-
36	M0310716		Plug		Appelez-nous	-
37	M0230923		Screw		Appelez-nous	-
39	B8362501		Insul. Mk Plug		Appelez-nous	-
40	M0275163		Tape Per Roll		Appelez-nous	-
41	D7567101		Ice Maker Assy		Appelez-nous	-
NI	D7561210		Glass Shelf Assembly, Lower		Appelez-nous	-
NI	R0179065		Crisper Top Assembly		Appelez-nous	-
NI	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
NI	D7561209		Glass Shelf Assembly, Upper		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
