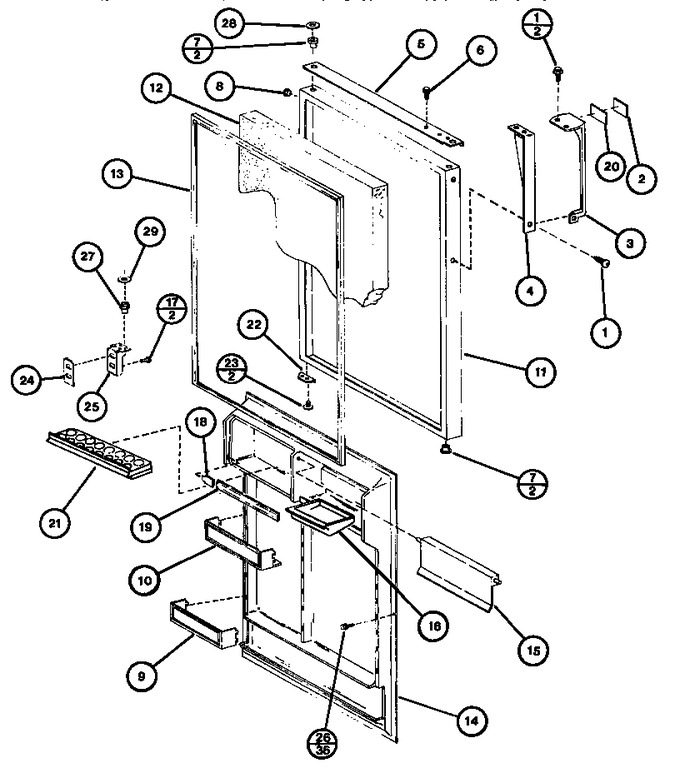

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0207431		Screw		Appelez-nous	-
1	M0222317		Screw		Appelez-nous	-
2	C8915808		Nameplate, Handle		Appelez-nous	-
3	D7610602		Handle Door		Appelez-nous	-
4	D7609806		Handle Pad		Appelez-nous	-
5	C8833704		Cap-door		Appelez-nous	-
6	M0203216		Screw		Appelez-nous	-
7	C3652901		Bushing, Hinge Pin		Appelez-nous	-
7	C8852202		Bearing, Hinge		Appelez-nous	-
8	M0310715		Plug		Appelez-nous	-
8	M0310725		Plug		Appelez-nous	-
8	M0310717		Plug		Appelez-nous	-
8	M0310719		Plug		Appelez-nous	-
8	WP67001130		Plug   (Replaces: M0310705)			Immediately	$ 8.21
9	D7574503		Cont Pkg Retainer V		Appelez-nous	-
10	D7565403		Shelf-door V		Appelez-nous	-
11	D7554522		Lower Door Pan, Ref, Copperton		Appelez-nous	-
11	D7554521		Lower Door Pan, Ref, White		Appelez-nous	-
11	D7554523		Door Ref-a-t-tc522g		Appelez-nous	-
11	D7554525		Lower Door Pan, Ref, Almond		Appelez-nous	-
11	D7554524		Door Ref G-t-tr20h		Appelez-nous	-
12	B5683508		Insulation		Appelez-nous	-
13	D7605109		Gasket				$ 31.30
14	D7567004		Panel, Inner Door		Appelez-nous	-
15	D7604402		Dairy Door		Appelez-nous	-
16	D3799802		Butter Tray		Appelez-nous	-
17	M0246159		Screw		Appelez-nous	-
18	B0530004		Support K		Appelez-nous	-
19	C8907201		Retainer Pkg		Appelez-nous	-
20	C8920501		Pad, Nameplate		Appelez-nous	-
21	D7587805		Egg Tray		Appelez-nous	-
22	C8894801		Door Stop		Appelez-nous	-
23	M0205631		Machine Screw		Appelez-nous	-
24	B5744802		Shim		Appelez-nous	-
24	B5744803		Shim		Appelez-nous	-
24	B5744801		Kit,btm Hinge Shim		Appelez-nous	-
25	C8814803		Bracket Lower Hinge		Appelez-nous	-
26	M0219717		Screw		Appelez-nous	-
27	C8814901		Pin, Hinge K		Appelez-nous	-
28	M0274049		Washer		Appelez-nous	-
29	M0274050		Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
