Diagram # Part Number Description Series Availability Ships Price Add to Cart
402 10908101 Tube, Drain Appelez-nous -
592 12075601 Harness, Cab. Appelez-nous -
602 10699301 Grommet Appelez-nous -
611 12039805 Back, Mach Comp Appelez-nous -
612 10428001 Plug, Ht Exch V Appelez-nous -
621 12100510 Cover-mc Appelez-nous -
622 10916501 Cord, Power Appelez-nous -
631 10442205 Cover, Ht Exch Appelez-nous -
651 M0219704 Screw Appelez-nous -
662 M0227217 Screw, Sm Appelez-nous -
1032 10163201 Elbow Drain Tube Appelez-nous -
1042 A3132301 Gasket Appelez-nous -
1192 10442205 Cover, Ht Exch Appelez-nous -
1301 M0227217 Screw, Sm Appelez-nous -
1442 B8372901 Clamp Appelez-nous -
1532 WPM0104106 Clip   (Replaces: M0104106) Special Order $ 8.17

1682 10544301 Plug, Im Tunnel Appelez-nous -
1951 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

7011 12047201 Plate-water Valve Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

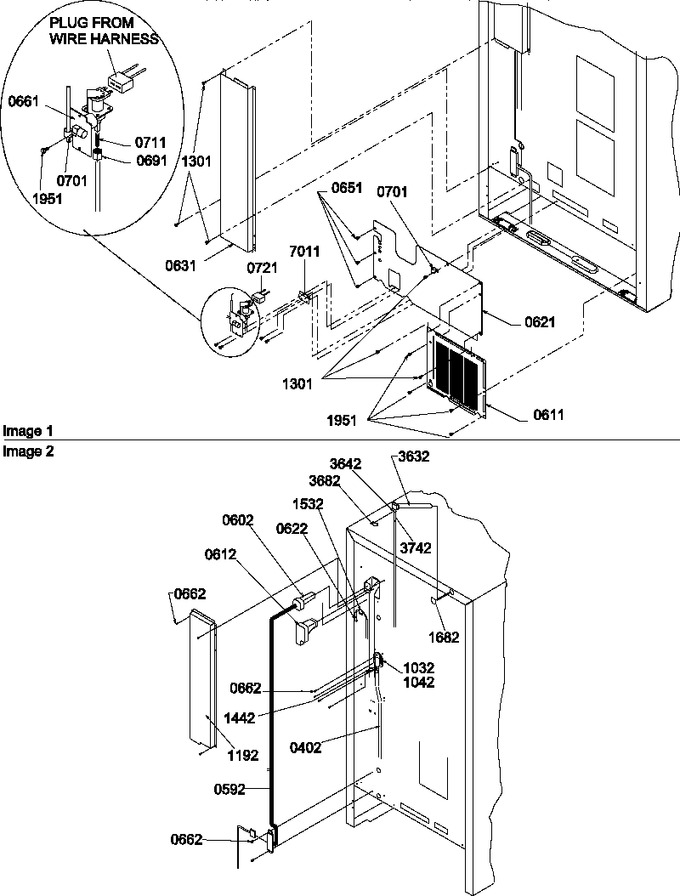

Diagram for TR18TL (BOM: P1303101W L)
