Diagram # Part Number Description Series Availability Ships Price Add to Cart
13 12035102 Kit, Housing Control Appelez-nous -
22 10476401 Insert-drain Blk Appelez-nous -
23 10439601 Rack, Control Appelez-nous -
32 10996001 Assy Drain Block Appelez-nous -
33 10442601 Pinion, Control Appelez-nous -
42 12035214 Ref Top-e Ct Appelez-nous -
43 R0164074 Jumper Wire-gray K Appelez-nous -
52 10573504 Harness, Mullion Appelez-nous -
53 R0168027 Timer-defrost   (Replaces: 10428601) In-Stock Immediately $ 159.86

62 D7714406 Socket, Angle Appelez-nous -
63 R0161075 Assy, Frz Control Appelez-nous -
73 10442801 Insert,damper Appelez-nous -
81 12120401 Assy, Glide Shelf Appelez-nous -
83 10442901 Insulation, Damper Appelez-nous -
91 10698540 Crisper Frame Assy Appelez-nous -
93 M0350201 Switch, St Appelez-nous -
101 B8386613 Gasket Appelez-nous -
103 W11384469 Switch   (Replaces: C3680304) In-Stock Immediately $ 39.09

112 10467701 Pipe, Light Appelez-nous -
122 10467702 Pipe, Light Appelez-nous -
132 10435911 Tray, Drip Appelez-nous -
133 10673602 Insulation, Cap Appelez-nous -
142 10450836 Membrane-breaker Appelez-nous -
143 10565101 Shield, Wire Appelez-nous -
151 10543601 Heater Mull. Appelez-nous -
152 10995003 Bottom, Frz Appelez-nous -
161 10433343 L Ctr Mull-pnt Appelez-nous -
162 10453001 Cap, Switch Appelez-nous -
172 10565401 Knob, Control Appelez-nous -
182 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

183 A3012543 Tube-plastic Appelez-nous -
192 M0224128 Screw Appelez-nous -
202 10995201 Insert-mk Air Sply Appelez-nous -
212 40A15 Bulb, Light (40 Watt)   (Replaces: A0282803) In-Stock Immediately $ 1.98

232 10435511 Frame, Ref Top Brk Appelez-nous -
302 10508701 Shield, Refrig. Light Appelez-nous -
312 10645601 Extrusion, Refr Light Appelez-nous -
381 R9800670 Screw, Tf   (Replaces: M0238731) Special Order $ 10.58

452 10594901 Gasket, Mk Air Supply Appelez-nous -
541 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 8.25

542 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 8.25

561 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

731 10423001 Rack, Ice Service Appelez-nous -
741 M0219523 Screw Appelez-nous -
751 M0270508 Washer Appelez-nous -
911 10461901 Post, Crisper Support In-Stock Immediately $ 25.85

941 10430216 Pan-crisper Appelez-nous -
1021 10440403 Duct, Frz Air Appelez-nous -
1161 10642103 Cover, Mk Air Sply Appelez-nous -
1171 10479401 Control, Mt. Kpr. Air Sup Appelez-nous -
1181 10479103 Tunnel, Mt Kpr Appelez-nous -
1321 W11384469 Switch   (Replaces: C3680304) In-Stock Immediately $ 39.09

1331 40A15 Bulb, Light (40 Watt)   (Replaces: A0282803) In-Stock Immediately $ 1.98

1341 C8730103 Housing-light Appelez-nous -
1351 D7714406 Socket, Angle Appelez-nous -
1361 B5733302 Clip, Ground Appelez-nous -
1371 10678401 Shield, Frz Light Appelez-nous -
1391 10433610 Plate, Center Top Appelez-nous -
1401 B0523584 Insulation Per Ft. Appelez-nous -
1431 M0310730 Plug Button (almond) Appelez-nous -
1431 WP12246608 Plug, Top Hinge Button (blk)   (Replaces: M0310731) In-Stock Immediately $ 8.15

1431 WP67001130 Plug, Top Hinge Button (wht)   (Replaces: M0310729) In-Stock Immediately $ 5.98

1451 M0311602 Plug, Button (white) Appelez-nous -
1511 10481001 Roller, Pan Special Order $ 10.99

1571 Y10440001 Shelf, Wire Frz. (18) Appelez-nous -
1641 M0253916 Screw Appelez-nous -
1671 10250502 Rack, Freezer Appelez-nous -
1691 M0580007 Grommet, Screw Appelez-nous -
1801 10779601 Insul. Air Duct Appelez-nous -
3561 D7806201 Pan, Ice Appelez-nous -
3621 M0211520 Screw - Sm Appelez-nous -
3661 10565701 Insert, Mk Control Appelez-nous -
3701 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

4051 10852401 Gasket, Mt Kpr Duct Appelez-nous -
6501 10772301 Insulation Appelez-nous -
8051 10992302 Rack, Utility Appelez-nous -
NI 10573401 Harness, Control Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

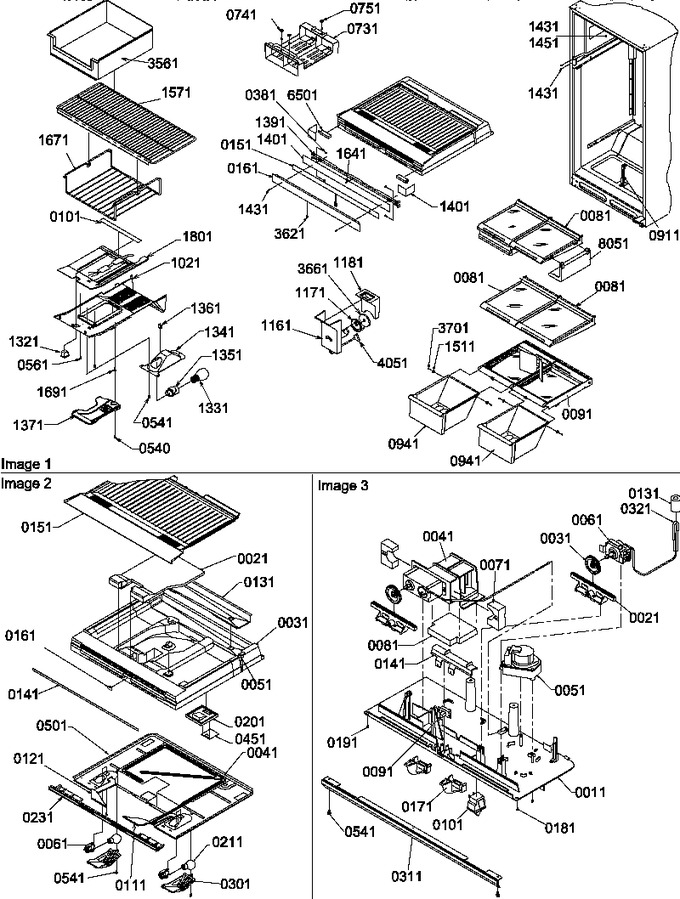

Diagram for TR18TL (BOM: P1303101W L)
