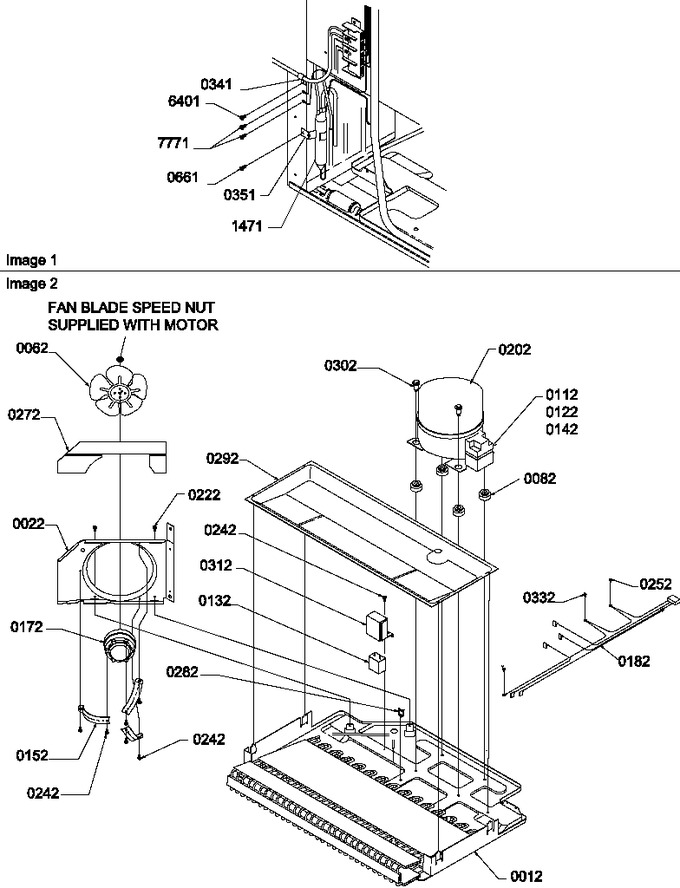

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 10481216 | Assy,cond/pan-e Ct |
|
- | |||||
| 22 | 10426904 | Shroud, Cond. Fan (e Coat) |
|
- | |||||
| 62 | B5742604 | Blade, Fan |
|
- | |||||
| 82 | WPW10169124 | Grommet, Compressor (Replaces: 10835901) |
|
$ 7.55 | |||||
| 112 | 10377016 | Overload |
|
- | |||||
| 122 | 2154436 | Relay-ptc (Replaces: 10097205) |
|
$ 141.69 | |||||
| 132 | WPW10662129 | Capacitor (Replaces: C8931607) |
|
Immediately | $ 58.86 | ||||
| 142 | C8960801 | Term Cover |
|
- | |||||
| 152 | 10582501 | Bracket, Cond. Motor |
|
- | |||||
| 172 | 833697 | Motor, Fan (Replaces: 10522102) |
|
Immediately | $ 88.15 | ||||
| 182 | 10705802 | Harness, Mach Comp |
|
- | |||||
| 202 | W10309994 | Kit,compressor-tpb1390yxa (Replaces: 10927201) |
|
Immediately | $ 643.55 | ||||
| 222 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 242 | M0223803 | Screw |
|
- | |||||
| 252 | 12992301 | Screw, Tf (Replaces: M0231604) |
|
$ 7.32 | |||||
| 272 | 10442702 | Gasket, Cond. Fan |
|
- | |||||
| 282 | B5667304 | Wire Clip |
|
- | |||||
| 292 | 10427401 | Pan, Drain |
|
- | |||||
| 302 | M0221523 | Screw, Shldr |
|
- | |||||
| 312 | 10266402 | Shield, Capacitor |
|
- | |||||
| 332 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 341 | M0103904 | Clamp, Speed |
|
- | |||||
| 351 | 10547001 | Clip, Drier |
|
- | |||||
| 661 | M0227217 | Screw, Sm |
|
- | |||||
| 1471 | WPB2150504 | Drier (Replaces: B2150504) |
|
$ 136.98 | |||||
| 6401 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 7771 | M0232317 | Screw |
|
- |
