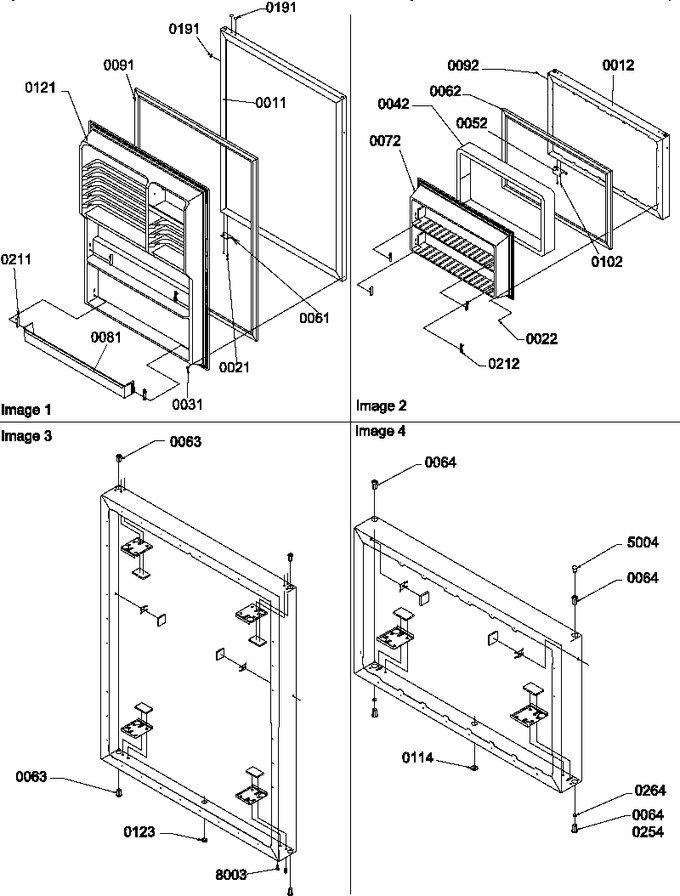

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10925409L		Assy, Ref Dr Foam(alm)		Appelez-nous	-
12	10925616L		Assy, Fz Dr Fm (alm)		Appelez-nous	-
21	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
22	M0219730		Screw				$ 7.65
31	M0219730		Screw				$ 7.65
42	B0523593		Insulation, Batt Frz. Dr.		Appelez-nous	-
52	10447102		Stop, Door		Appelez-nous	-
61	10447102		Stop, Door		Appelez-nous	-
62	WP12550110Q		Gasket,fz Dr(white)   (Replaces: 10456802)				$ 298.65
63	10961001		Bushing, Door (wht)		Appelez-nous	-
64	10961001		Bushing, Door (wht)		Appelez-nous	-
72	10461001		Liner, Frz Door (18)		Appelez-nous	-
81	10419206		Retainer, Ref Door		Appelez-nous	-
91	WP12550109Q		Gasket,ref Dr(white)   (Replaces: 10456801)			Immediately	$ 322.33
92	M0310730		Plug Button (almond)		Appelez-nous	-
102	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
114	M0310338		Plug Button Almond		Appelez-nous	-
121	10461705		Liner,ref Door		Appelez-nous	-
123	M0310338		Plug Button Almond		Appelez-nous	-
191	M0310730		Plug Button (almond)		Appelez-nous	-
211	10202001		Clip, Retainer		Appelez-nous	-
212	10202001		Clip, Retainer		Appelez-nous	-
254	12028601		Bushing, Door (wht)		Appelez-nous	-
264	10252903		Filter, Bushing		Appelez-nous	-
5004	10686402		Plug, Button		Appelez-nous	-
8003	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
