Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3171148 Latch Assembly Appelez-nous -
1 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 8.47

2 308185 Safety Switch Appelez-nous -
2 98106 Screw (2) Appelez-nous -
3 309245 Insulator, Switch Appelez-nous -
4 WP313808 Screw, 6-32 X 1/4 (2)   (Replaces: 311932) Special Order $ 8.30

4 309258 Screw, 6 X 3/8b (2) Appelez-nous -
4 313035 Shield, Latch Terminal Appelez-nous -
5 3147065 Handle, Latch Appelez-nous -
5 308422 Screw, 10-24 X 1/2 (2) Appelez-nous -
5 WP488627 Screw, 8-18 X 1/2   (Replaces: 313349) Special Order $ 8.11

5 311056 Screw (2) Appelez-nous -
6 155023 Screw, In-Stock Immediately $ 7.91

6 3148684 Knob, Latch Appelez-nous -
7 WP681414 Screw (8)   (Replaces: 343641) In-Stock Immediately $ 8.47

7 WP3390631 Screw, 10a X 3/8 (4)   (Replaces: 309112) Special Order $ 8.25

7 3149194 Box, Burner Appelez-nous -
8 307973 Shield, Wiring Appelez-nous -
8 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 8.47

9 WP681414 Screw (2)   (Replaces: 690989) In-Stock Immediately $ 8.47

9 3148659 Rod, Cooktop Appelez-nous -
10 3148669 Switch, Lock Appelez-nous -
11 307965 Bracket (2) Appelez-nous -
11 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 8.47

12 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 8.47

12 307966 Pin, Cooktop (2) Appelez-nous -
13 3170982 Cooktop (almond) Appelez-nous -
13 3170981 Cooktop (white) Appelez-nous -
13 3170984 Cooktop (platinum) Appelez-nous -
13 3170983 Cooktop (toast) Appelez-nous -
14 3147864 Insulator 10-32 X 1/2 Appelez-nous -
15 WP308605 Strain Relief   (Replaces: 308604) Special Order $ 11.76

15 WP965173 Screw, 8a X 3/8   (Replaces: 246132) In-Stock Immediately $ 11.87

16 WP313808 Screw, 6-32 X 1/4 (4)   (Replaces: 313808) Special Order $ 8.30

16 330031 Receptacle, Clip (4)   (Replaces: 312606) In-Stock Immediately $ 16.09

17 W10858781 Adapter Ring (8`` (2))   (Replaces: 3150245) Special Order $ 99.92

17 W10854470 Adapter Ring (6`` (2))   (Replaces: 3150244) Special Order $ 94.93

18 W10291024 Reflector Page 8`` (2)   (Replaces: 3148407) In-Stock Immediately $ 55.44

18 W10291024 Reflector Page 6`` (2)   (Replaces: 3148406) In-Stock Immediately $ 55.44

19 WP660533 Unit, Surface 8`` (240v) (2)   (Replaces: 660533) In-Stock Immediately $ 43.86

19 WP660532 Unit, Surface 6`` (240v) (2)   (Replaces: 660529) In-Stock Immediately $ 41.00

23 313570 Clamp, Tube Appelez-nous -
24 814103 Clip, Hold Down (4)   (Replaces: 3148790) Special Order $ 10.52

26 3149270 Latch, Lock Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

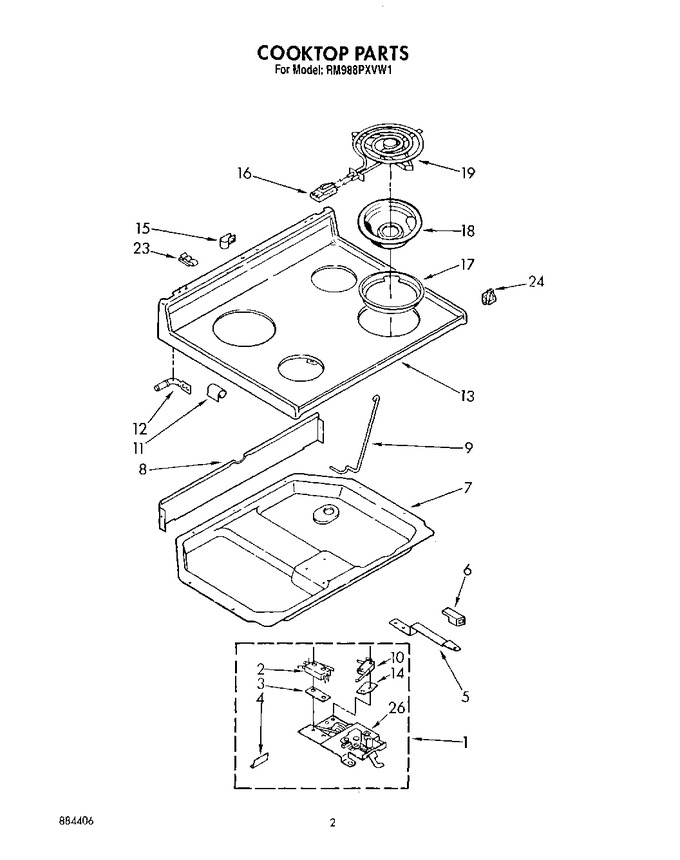

Diagram for RM988PXVW1
