SELECT A DIAGRAM

02 - Cooktop


03 - Oven


04 - Door And Drawer


05 - Internal Oven

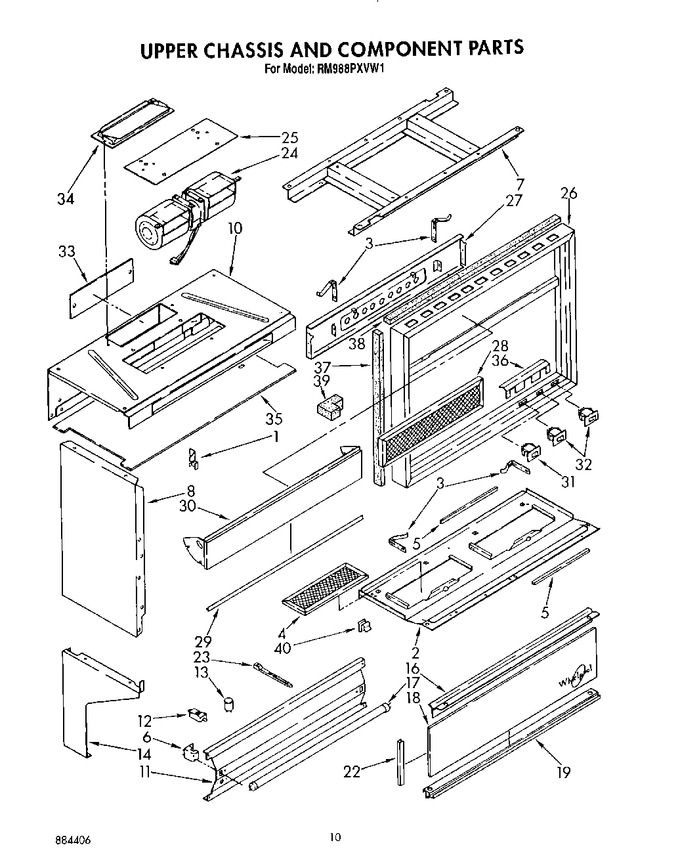

06 - Upper Chassis And Component


07 - Magnetron And Air Flow


08 - Control


09 - Cabinet And Stirrer


10 - Door And Latch, Lit/optional


11 - Wiring Harness


12 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3147487		Bracket, Stop L.h.		Appelez-nous	-
1	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 7.85
1	3147486		Bracket, Stop R.h.		Appelez-nous	-
2	312783		Bumper (4)		Appelez-nous	-
2	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 7.85
2	314216		Cover, Bottom		Appelez-nous	-
2	WP488729		Screw (2)   (Replaces: 313638)			Immediately	$ 7.79
2	3147593		Seal, Foam		Appelez-nous	-
3	3147525		Clip (4)		Appelez-nous	-
4	3147608		Filter, Mesh (2)		Appelez-nous	-
5	3147756		Edge, Protector (2)		Appelez-nous	-
6	WP313808		Screw,   (Replaces: 313808)				$ 7.60
6	3147245		Socket, Assembly R.h.		Appelez-nous	-
6	WP681414		Screw (4)   (Replaces: 343641)			Immediately	$ 7.85
6	3147244		Socket, Assembly L.h.		Appelez-nous	-
7	WP681414		Screw (2)   (Replaces: 343641)			Immediately	$ 7.85
7	330677		Support, Frame		Appelez-nous	-
7	WP488729		Screw (2)   (Replaces: 313638)			Immediately	$ 7.79
8	3147592		Side Panel, L.h. (seal, Foam (2))		Appelez-nous	-
8	WP488729		Side Panel L.h. (screw (3))   (Replaces: 313638)			Immediately	$ 7.79
8	3171910		(side Panel, R.h.) (white)		Appelez-nous	-
8	3171916		(side Panel, R.h.) (platinum)		Appelez-nous	-
8	3171914		(side Panel, R.h.) (toast)		Appelez-nous	-
8	3147591		Side Panel L.h. (seal, Foam (4))		Appelez-nous	-
8	3171912		(side Panel, R.h.) (almond)		Appelez-nous	-
8	WP488627		Side Panel, L.h. (screw, 8a X 1/2 (2))   (Replaces: 338156)				$ 7.57
8	3171917		Side Panel L.h. (platinum)		Appelez-nous	-
8	3171915		Side Panel L.h. (toast)		Appelez-nous	-
8	3171913		Side Panel, L.h. (almond)		Appelez-nous	-
8	WP681414		Side Panel L.h. (screw (grnd.))   (Replaces: 343641)			Immediately	$ 7.85
8	3171911		Side Panel, L.h. (white)		Appelez-nous	-
10	WP488729		Screw, 8 - 18 X .50 (6)   (Replaces: 313638)			Immediately	$ 7.79
10	3149068		Top Panel		Appelez-nous	-
11	3147589		Panel, Backguard		Appelez-nous	-
12	WP965173		Screw (2)   (Replaces: 246132)			Immediately	$ 10.72
12	3147224		Socket, Flourscent		Appelez-nous	-
13	387695		Starter, Lamp				$ 8.20
14	314200		End Trim R.h. (toast)		Appelez-nous	-
14	WP681414		(end Trim L.h.) (screw (6))   (Replaces: 343641)			Immediately	$ 7.85
14	314203		(end Trim L.h.) (white)		Appelez-nous	-
14	314201		End Trim R.h. (platinum)		Appelez-nous	-
14	314199		End Trim R.h. (almond)		Appelez-nous	-
14	314198		End Trim R.h. (almond)		Appelez-nous	-
14	308043		(end Trim L.h.) (screw (2))		Appelez-nous	-
14	314206		End Trim L.h. (platinum)		Appelez-nous	-
14	314205		End Trim L.h. (toast)		Appelez-nous	-
14	314204		(end Trim L.h.) (almond)		Appelez-nous	-
16	313320		Trim, Glass (top)		Appelez-nous	-
16	WP488627		Screw (3)   (Replaces: 338156)				$ 7.57
17	WP95292		Lamp, Fluorescent   (Replaces: 95292)			Immediately	$ 134.94
18	313322		Panel, Glass		Appelez-nous	-
19	313321		Trim, Glass (bottom)		Appelez-nous	-
19	WP90767		Screw, 8a X 3/8 (2)   (Replaces: 90767)			Immediately	$ 7.82
22	313319		Trim, End (glass) (2)		Appelez-nous	-
23	WPW10339879		Cable Tie (2)   (Replaces: 309330)				$ 7.90
24	3147817		Blower, Exhaust		Appelez-nous	-
25	3147798		Cover, Access		Appelez-nous	-
25	3147866		Nut (6)		Appelez-nous	-
25	WP488729		Screw (6)   (Replaces: 313638)			Immediately	$ 7.79
26	309133		Screw, 8-32 X 1/2 (4)		Appelez-nous	-
26	3149557		Frame		Appelez-nous	-
27	3147712		Panel, Vent Door		Appelez-nous	-
27	3147724		Screw, Schoulder (2)		Appelez-nous	-
27	309133		Screw (2)		Appelez-nous	-
27	3147858		Rivet (2)		Appelez-nous	-
27	3147764		Spring, Vent Door (2)		Appelez-nous	-
27	3147755		Rivet, Plastic (2)		Appelez-nous	-
28	3147607		Filter, Aluminum		Appelez-nous	-
28	3147525		Clip (2)		Appelez-nous	-
29	WP313808		Screw, 6-32 X 9/32 (3)   (Replaces: 313808)				$ 7.60
29	3149007		Handle, Vent Door		Appelez-nous	-
30	3170269		Door, Vent		Appelez-nous	-
31	WP3147265		Switch, Rocker (exhaust)   (Replaces: 3147265)				$ 141.79
32	WP4314961		Switch, Rocker (2)   (Replaces: 314134)				$ 89.48
33	3147726		Cover, Exhaust		Appelez-nous	-
34	3147843		Damper		Appelez-nous	-
35	3147590		Seal, Foam		Appelez-nous	-
35	3147250		Seperator, Air		Appelez-nous	-
35	WP488729		Screw (4)   (Replaces: 313638)			Immediately	$ 7.79
36	3148158		Insulator		Appelez-nous	-
37	3147595		Seal, Foam (2)		Appelez-nous	-
38	3147596		Seal, Foam		Appelez-nous	-
39	3149016		Seal, Foam (4)		Appelez-nous	-
40	311311		Clip, Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
