Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 330086 Main Chassis (white) Appelez-nous -
1 330092 Main Chassis (platinum) Appelez-nous -
1 330091 Main Chassis (toast) Appelez-nous -
1 330090 Main Chassis (almond) Appelez-nous -
1 WP681414 Main Chassis (screw, 10-16 X 1/2 (2))   (Replaces: 343641) In-Stock Immediately $ 8.47

1 WP681414 Main Chassis (screw 10-32 X 1/2 (2))   (Replaces: 690989) In-Stock Immediately $ 8.47

2 238614 Bumper, Cooktop (2) Special Order $ 84.79

3 WPW10058460 Leg Leveling (4)   (Replaces: 312701) In-Stock Immediately $ 8.24

4 WP681414 Screw, 10-16 X 1/2 (13)   (Replaces: 343641) In-Stock Immediately $ 8.47

4 3170859 Frame, Front Appelez-nous -
5 307985 Pin, Hinge (2) Special Order $ 29.54

6 309111 Snubber, Door (2) Appelez-nous -
7 308306 Pushnut (2) Appelez-nous -
8 327891 Hinge (l.h.) Appelez-nous -
8 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 8.47

8 327890 Hinge (r.h.) Appelez-nous -
9 311056 Screw (3) Appelez-nous -
9 329002 Oven Appelez-nous -
10 308043 Screw, 10-12 X 7/8 (2) Appelez-nous -
10 660556 Socket, Lamp Appelez-nous -
11 8009 Bulb, Oven Light   (Replaces: 311255) In-Stock Immediately $ 18.67

12 308039 Cover, Light Appelez-nous -
13 308038 Retainer, Light Appelez-nous -
14 314215 Screw Appelez-nous -
14 314209 Switch, Broil Appelez-nous -
15 314210 Switch, Bake Appelez-nous -
15 314215 Screw Appelez-nous -
16 329710 Channel, Arm (2) Appelez-nous -
17 257314 Plug Button Appelez-nous -
18 311220 Bracket, Oven (mounting) Appelez-nous -
18 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 8.47

19 307748 Screw, 10a X 1/2 (2) Appelez-nous -
19 307961 Vent, Oven Appelez-nous -
20 98005642 Clip, Therm Bulb (2)   (Replaces: 313382) In-Stock Immediately $ 87.08

21 WP307986 Hinge Pin (2)   (Replaces: 307986) Special Order $ 15.81

22 307594 Ring, Retainer (2) Appelez-nous -
23 WP308126 Spring, Oven Door (2)   (Replaces: 308126) Special Order $ 48.22

24 WP308125 Anchor, Spring (2)   (Replaces: 308125) Special Order $ 12.74

25 310345 Switch, Door Special Order $ 94.86

26 314195 Support, Tubing R.h. Appelez-nous -
26 314197 Support, Tubing L.h. Appelez-nous -
27 3148284 Seal, Door Appelez-nous -
27 WP313808 Screw (2)   (Replaces: 313808) Special Order $ 8.30

28 8273888A Bracket, Anchor   (Replaces: 3148603) Special Order $ 32.62

28 3148605 Grommet (2) Appelez-nous -
28 3148604 Screw (2) Appelez-nous -
33 660001 Ballast Appelez-nous -
33 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 8.47

34 3148605 Anchor, Plastic Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

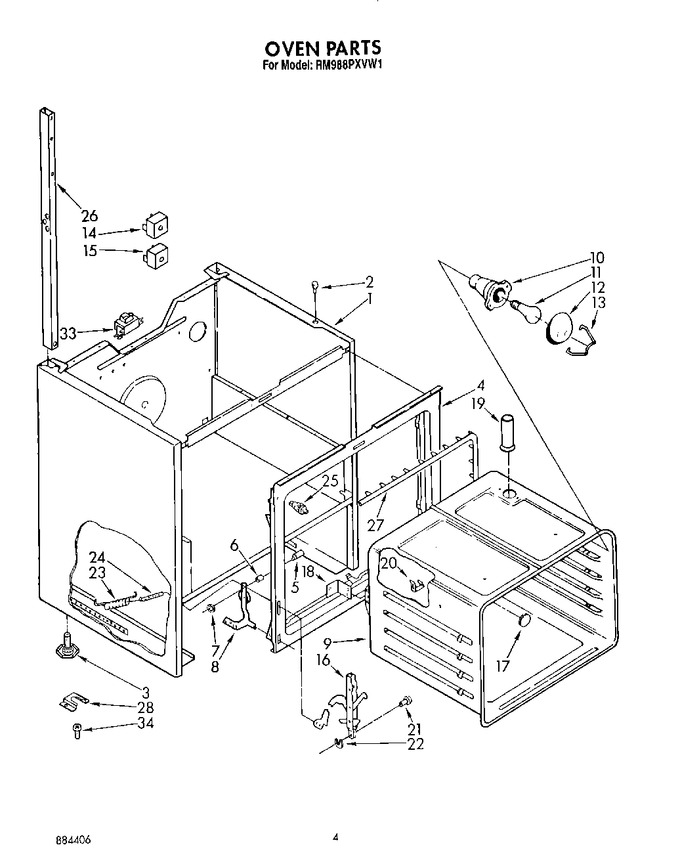

Diagram for RM988PXVW1
