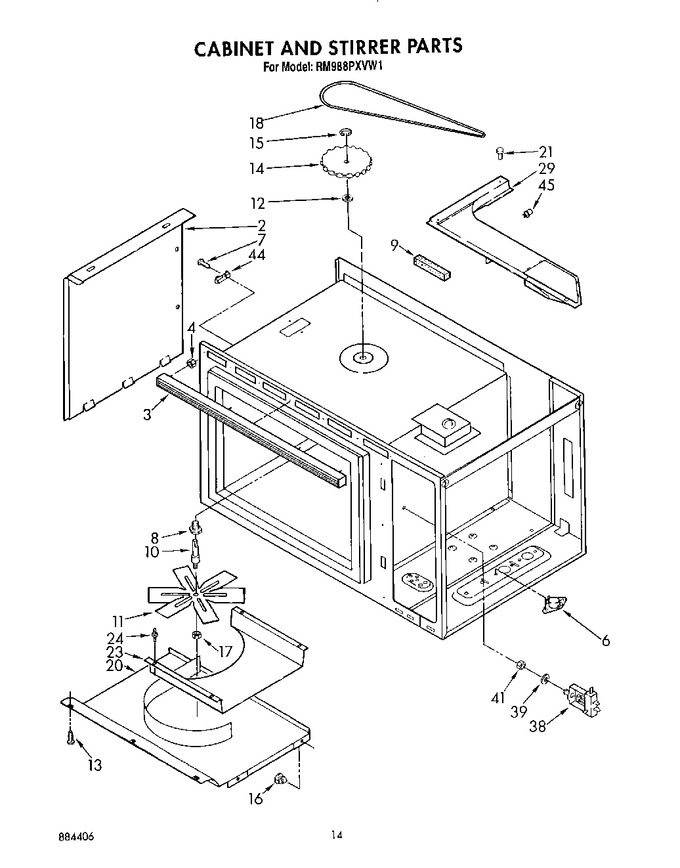

09 - Cabinet And Stirrer


10 - Door And Latch, Lit/optional


11 - Wiring Harness


12 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3147004		Cover, Side		Appelez-nous	-
2	WP488729		Screw (4)   (Replaces: 313638)			Immediately	$ 8.28
3	3149297		Grille, Air		Appelez-nous	-
4	3147378		Nut (3)		Appelez-nous	-
6	3147274		Thermostat		Appelez-nous	-
6	246131		Screw (2)		Appelez-nous	-
7	312713		Screw		Appelez-nous	-
8	312023		Bushing, Stirrer		Appelez-nous	-
9	3147599		Seal, Foam		Appelez-nous	-
10	312026		Shaft, Stirrer		Appelez-nous	-
11	313595		Stirrer Blade		Appelez-nous	-
12	312025		Washer, Nylon		Appelez-nous	-
13	313816		Screw, 8-32 X 1/2 (3)		Appelez-nous	-
14	311923		Pulley, Stirrer Blade		Appelez-nous	-
15	311999		``e`` Ring		Appelez-nous	-
16	313740		Fastener (4)		Appelez-nous	-
17	WP487939		Nut, Standard Hex 1/4-20   (Replaces: 311721)				$ 8.62
18	WP313646		Belt, Drive   (Replaces: 313646)				$ 88.73
20	313563		Stirrer Cover		Appelez-nous	-
21	310423		Fastener		Appelez-nous	-
23	313735		Plate, Tuning		Appelez-nous	-
24	313739		Support (4)		Appelez-nous	-
29	3147003		Baffle, Air Exhaust		Appelez-nous	-
38	661209		Probe Jack		Appelez-nous	-
39	313105		Washer, Internal Lock		Appelez-nous	-
41	313104		Nut		Appelez-nous	-
44	313855		Fuse, Thermal		Appelez-nous	-
45	3147060		Sensor, Gas		Appelez-nous	-
